ACTIVE
Number of channels |
6 |
Technology family |
AHC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
5.5 |
Input type |
Standard CMOS |
Output type |
Push-Pull |
Clock frequency (max) (MHz) |
110 |
IOL (max) (mA) |
8 |
IOH (max) (mA) |
-8 |
Supply current (max) (µA) |
40 |
Features |
Balanced outputs, High speed (tpd 10-50ns), Over-voltage tolerant inputs |
Operating temperature range (°C) |
-40 to 85 |
Rating |
Catalog |

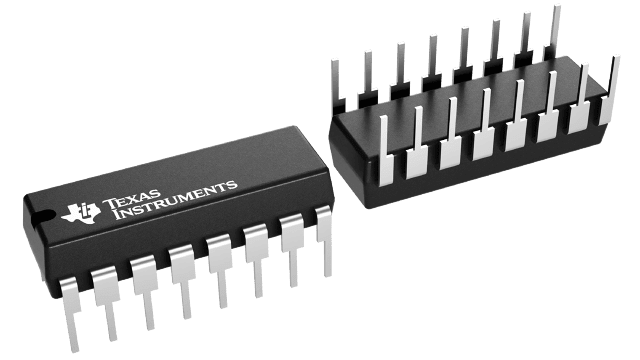

PDIP (N)-16-181.42 mm² 19.3 x 9.4

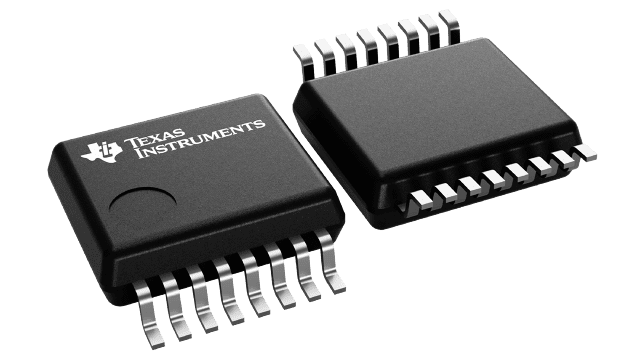

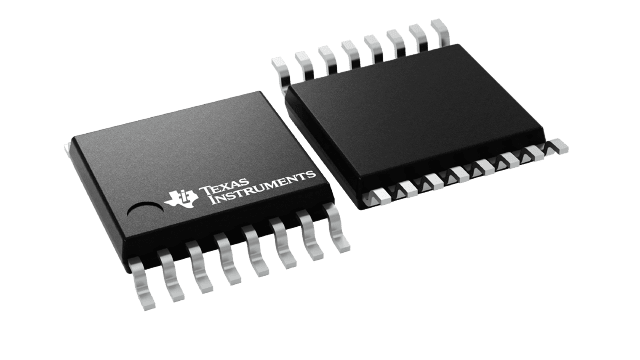

SN74AHC174

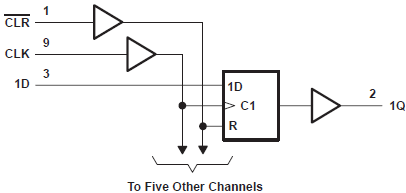

The AHC174 devices are positive-edge-triggered D-type flip-flops with a direct clear (CLR) input and are designed for 2V to 5.5V VCC operation.
