DAC8806
  • DAC8806
  • DAC8806

DAC8806

ACTIVE

14-Bit, Single Channel, Parallel Interface, Multiplying Digital-to-Analog Converter

Texas Instruments DAC8806 Product Info

1 April 2026 0

Parameters

Resolution (Bits)

14

Number of DAC channels

1

Interface type

Parallel

Output type

Unbuffered Current

INL (max) (±LSB)

1

Settling time (µs)

0.5

Reference type

Ext

Architecture

Multiplying DAC

Rating

Catalog

Sample/update rate (Msps)

2

Power consumption (typ) (mW)

0.025

Operating temperature range (°C)

-40 to 85

Package

SSOP (DB)-28-79.56 mm² 10.2 x 7.8

Features

  • ±0.5LSB DNL
  • ±1LSB INL
  • 14-Bit Monotonic
  • Low Noise: 10nV/Hz
  • Low Power: IDD = 2µA
  • Analog Power Supply: +2.7V to +5.5V
  • 1.66mA Full-Scale Current, with VREF = 10V
  • Settling Time: 0.5µs
  • 4-Quadrant Multiplying Reference
  • Reference Bandwidth: 8MHz
  • Reference Input: ±15V
  • Reference Dynamics: -105 dB THD
  • SSOP-28 Package
  • Industry-Standard Pin Configuration
  • APPLICATIONS
    • Automatic Test Equipment
    • Instrumentation
    • Digitally Controlled Calibration
    • Industrial Control PLCs

All other trademarks are the property of their respective owners

  • ±0.5LSB DNL
  • ±1LSB INL
  • 14-Bit Monotonic
  • Low Noise: 10nV/Hz
  • Low Power: IDD = 2µA
  • Analog Power Supply: +2.7V to +5.5V
  • 1.66mA Full-Scale Current, with VREF = 10V
  • Settling Time: 0.5µs
  • 4-Quadrant Multiplying Reference
  • Reference Bandwidth: 8MHz
  • Reference Input: ±15V
  • Reference Dynamics: -105 dB THD
  • SSOP-28 Package
  • Industry-Standard Pin Configuration
  • APPLICATIONS
    • Automatic Test Equipment
    • Instrumentation
    • Digitally Controlled Calibration
    • Industrial Control PLCs

All other trademarks are the property of their respective owners

Description

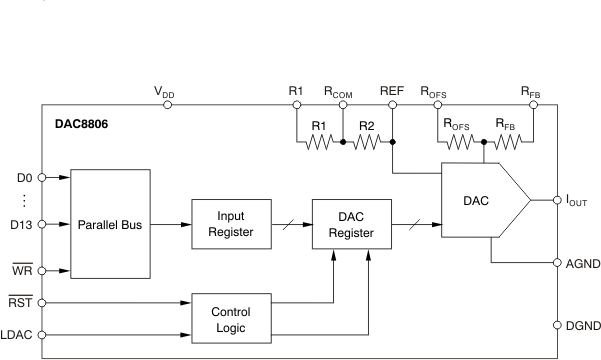

The DAC8806, a multiplying digital-to-analog converter (DAC), is designed to operate from a single 2.7V to 5.5V supply.

The applied external reference input voltage VREF determines the full-scale output current. An internal feedback resistor (RFB) provides temperature tracking for the full-scale output when combined with an external, current-to-voltage (I/V) precision amplifier.

A parallel interface offers high-speed communications. The DAC8806 is packaged in a space-saving SSOP-28 package and has an industry-standard pinout.

The DAC8806, a multiplying digital-to-analog converter (DAC), is designed to operate from a single 2.7V to 5.5V supply.

The applied external reference input voltage VREF determines the full-scale output current. An internal feedback resistor (RFB) provides temperature tracking for the full-scale output when combined with an external, current-to-voltage (I/V) precision amplifier.

A parallel interface offers high-speed communications. The DAC8806 is packaged in a space-saving SSOP-28 package and has an industry-standard pinout.
