Texas Instruments LMS3635-Q1 Product Info

Parameters

Rating	Automotive
Topology	Buck
Iout (max) (A)	3.5
Vin (max) (V)	42
Vin (min) (V)	3.5
Vout (max) (V)	15
Vout (min) (V)	1
Features	Enable, Forced PWM, Frequency synchronization, Light Load Efficiency, Over Current Protection, Power good, Pre-Bias Start-Up, Soft Start Fixed, Spread Spectrum, Synchronous Rectification, Wettable flanks package
EMI features	Low parasitic Hotrod packaging, Spread Spectrum
Control mode	current mode
Operating temperature range (°C)	-40 to 150
Iq (typ) (A)	0.000015
Duty cycle (max) (%)	98

Package

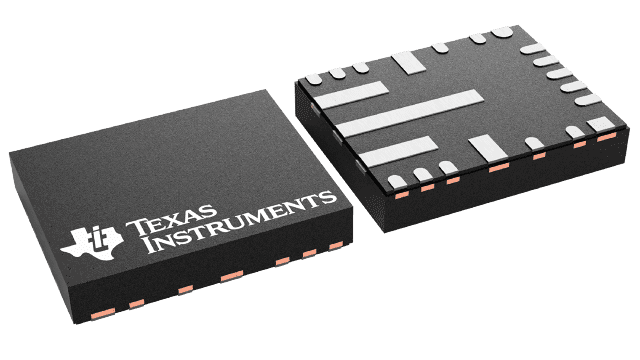

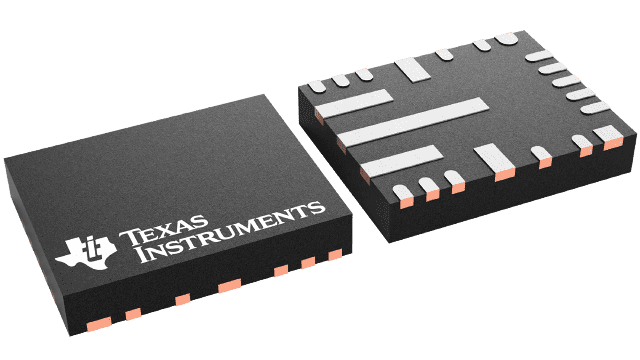

VQFN-HR (RNL)-22-20 mm² 5 x 4

Features

AEC-Q100-qualified for automotive applications
- Device temperature grade 1: –40°C to +125°C ambient operating temperature
- Device HBM classification level 2
- Device CDM classification level C6
96% Peak efficiency while converting 12 V to 5 V
Low EMI and minimized switch node ringing
400-kHz (±10%) fixed switching frequency
–40°C to +150°C junction temperature range
External frequency synchronization
RESET output with internal filter and 3-ms release timer
Automatic light load mode for improved efficiency
Pin-selectable forced PWM mode
Built-In compensation, soft start, current limit, thermal shutdown, and UVLO
0.35-V dropout with 3.5-A Load at 25°C (Typical)
18-µA I_{Q_VIN}: quiescent current at 3.3 V_OUT and no load (typical)
Output voltage: 5 V, 3.3 V, and ADJ (1 V to 20 V)
±1.5% reference voltage tolerance
Create a custom design using the LMS3655-Q1 with the WEBENCH Power Designer

AEC-Q100-qualified for automotive applications
- Device temperature grade 1: –40°C to +125°C ambient operating temperature
- Device HBM classification level 2
- Device CDM classification level C6
96% Peak efficiency while converting 12 V to 5 V
Low EMI and minimized switch node ringing
400-kHz (±10%) fixed switching frequency
–40°C to +150°C junction temperature range
External frequency synchronization
RESET output with internal filter and 3-ms release timer
Automatic light load mode for improved efficiency
Pin-selectable forced PWM mode
Built-In compensation, soft start, current limit, thermal shutdown, and UVLO
0.35-V dropout with 3.5-A Load at 25°C (Typical)
18-µA I_{Q_VIN}: quiescent current at 3.3 V_OUT and no load (typical)
Output voltage: 5 V, 3.3 V, and ADJ (1 V to 20 V)
±1.5% reference voltage tolerance
Create a custom design using the LMS3655-Q1 with the WEBENCH Power Designer

Description

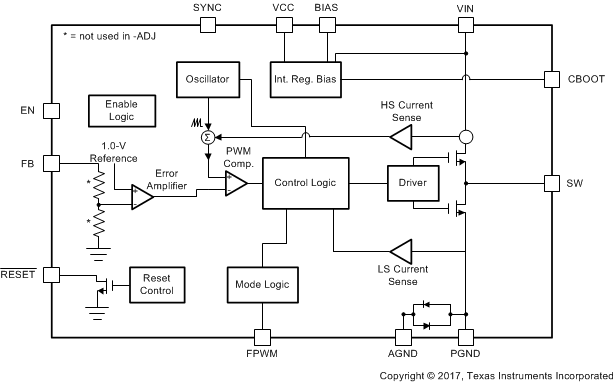

The LMS3635-Q1 and LMS3655-Q1 synchronous buck regulators are optimized for high performance applications, providing an output voltage of 3.3 V, 5 V, or an adjustable output of 1 V to 20 V. Seamless transition between PWM and PFM modes, along with a low quiescent current, ensures high efficiency and superior transient responses at all loads.

Advanced high-speed circuitry allows the LMS3655-Q1 to regulate an input of 24 V to an output of 3.3 V at a fixed frequency of 400 kHz while also enabling a continuous load current of 5.5 A. An innovative frequency foldback architecture allows this device to regulate a 3.3-V output from an input voltage of only 3.5 V. The input voltage can range up to 36 V, with transient tolerance up to 42 V, easing input surge protection design.

An open-drain reset output, with built-in filtering and delay, provides a true indication of system status. This feature negates the requirement for an additional supervisory component, saving cost and board space.
