TPS659128
  • TPS659128
  • TPS659128
  • TPS659128
  • TPS659128
  • TPS659128
  • TPS659128

TPS659128

ACTIVE

PMU for processor power Linux Mainline Status Linux Source Files

Texas Instruments TPS659128 Product Info

1 April 2026 1

Parameters

Processor supplier

Generic

Processor name

Generic

Product type

Processor and FPGA

Regulated outputs (#)

14

Step-down DC/DC converter

4

Step-up DC/DC converter

0

LDO

10

Vin (min) (V)

0.8

Vin (max) (V)

5.5

Vout (min) (V)

0.5

Vout (max) (V)

3.8

Iout (max) (A)

2.5

Configurability

Factory programmable

Features

Comm control, Dynamic voltage scaling, Eco-mode, Overcurrent protection, Power sequencing, Thermal shutdown, UVLO fixed

Rating

Catalog

Operating temperature range (°C)

-40 to 105

Step-down DC/DC controller

0

Step-up DC/DC controller

0

Iq (typ) (mA)

0.008

Switching frequency (max) (kHz)

2800

Shutdown current (ISD) (typ) (µA)

3

Switching frequency (typ) (kHz)

2800

Package

DSBGA (YFF)-81-16 mm² 4 x 4

Features

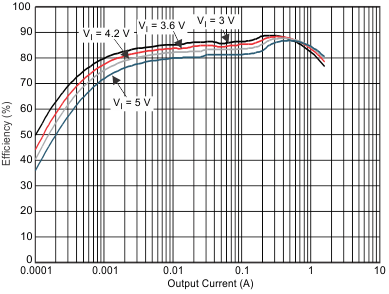

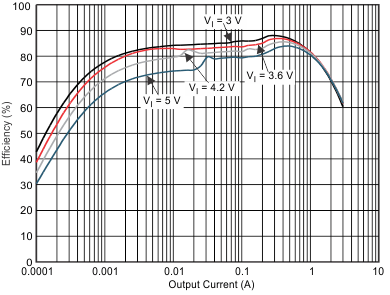

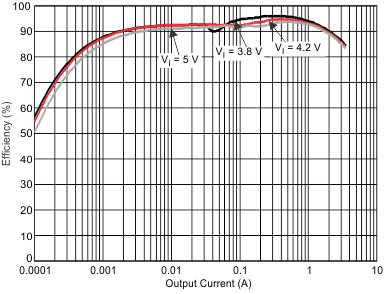

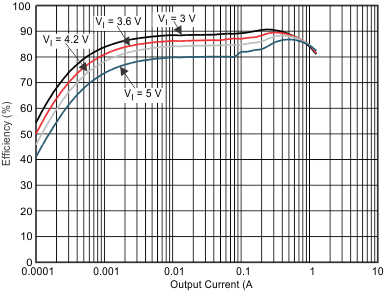

  • Four step-down converters:
    • Input voltage (VIN) range from 2.7 V to 5.5 V
    • Power save mode at light load current
    • Output voltage accuracy in PWM mode ±2%
    • Typical 26-µA quiescent current per converter
    • Dynamic voltage scaling
    • 100% duty cycle for lowest dropout
  • Ten LDOs:
    • 8 general-purpose LDOs
    • Output voltage range from 0.8 V to 3.3 V
    • Typical 32-µA quiescent current per LDO
    • 2 low-noise RF-LDOs
    • Output voltage range from 1.6 V to 3.3 V
    • Preregulation support by separate power inputs
    • Eco-mode™ control scheme
    • VIN range of LDOs respective to the following voltage ranges:
      • 1.8 V to 3.6 V
      • 3 V to 5.5 V
  • Three LED drivers:
    • Internal dimming using I2C
    • Up to 20 mA per current sink
  • Thermal monitoring
    • High temperature warning
    • Thermal shutdown
  • Bypass switch
    • Used with DCDC4 in applications powering a Radio Frequency Power Amplifier (RF-PA)
  • Interface
    • I2C interface
    • Power I2C interface for Dynamic Voltage Scaling (DVS)
    • Serial Peripheral Interface (SPI)
  • 32-kHz RC oscillator
  • Undervoltage lockout, battery fault comparator, and long button-press detection

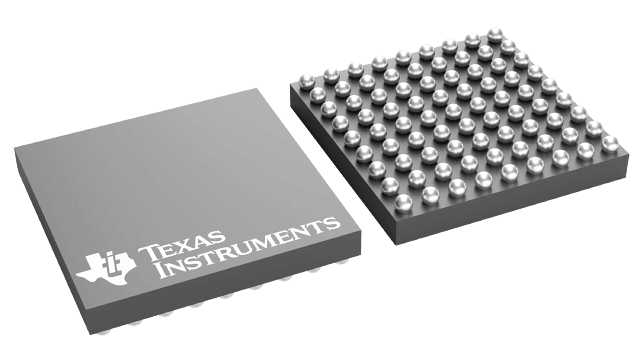

  • 3.6-mm × 3.6-mm DSBGA package with 0.4-mm pitch
  • Four step-down converters:
    • Input voltage (VIN) range from 2.7 V to 5.5 V
    • Power save mode at light load current
    • Output voltage accuracy in PWM mode ±2%
    • Typical 26-µA quiescent current per converter
    • Dynamic voltage scaling
    • 100% duty cycle for lowest dropout
  • Ten LDOs:
    • 8 general-purpose LDOs
    • Output voltage range from 0.8 V to 3.3 V
    • Typical 32-µA quiescent current per LDO
    • 2 low-noise RF-LDOs
    • Output voltage range from 1.6 V to 3.3 V
    • Preregulation support by separate power inputs
    • Eco-mode™ control scheme
    • VIN range of LDOs respective to the following voltage ranges:
      • 1.8 V to 3.6 V
      • 3 V to 5.5 V
  • Three LED drivers:
    • Internal dimming using I2C
    • Up to 20 mA per current sink
  • Thermal monitoring
    • High temperature warning
    • Thermal shutdown
  • Bypass switch
    • Used with DCDC4 in applications powering a Radio Frequency Power Amplifier (RF-PA)
  • Interface
    • I2C interface
    • Power I2C interface for Dynamic Voltage Scaling (DVS)
    • Serial Peripheral Interface (SPI)
  • 32-kHz RC oscillator
  • Undervoltage lockout, battery fault comparator, and long button-press detection
  • 3.6-mm × 3.6-mm DSBGA package with 0.4-mm pitch

Description

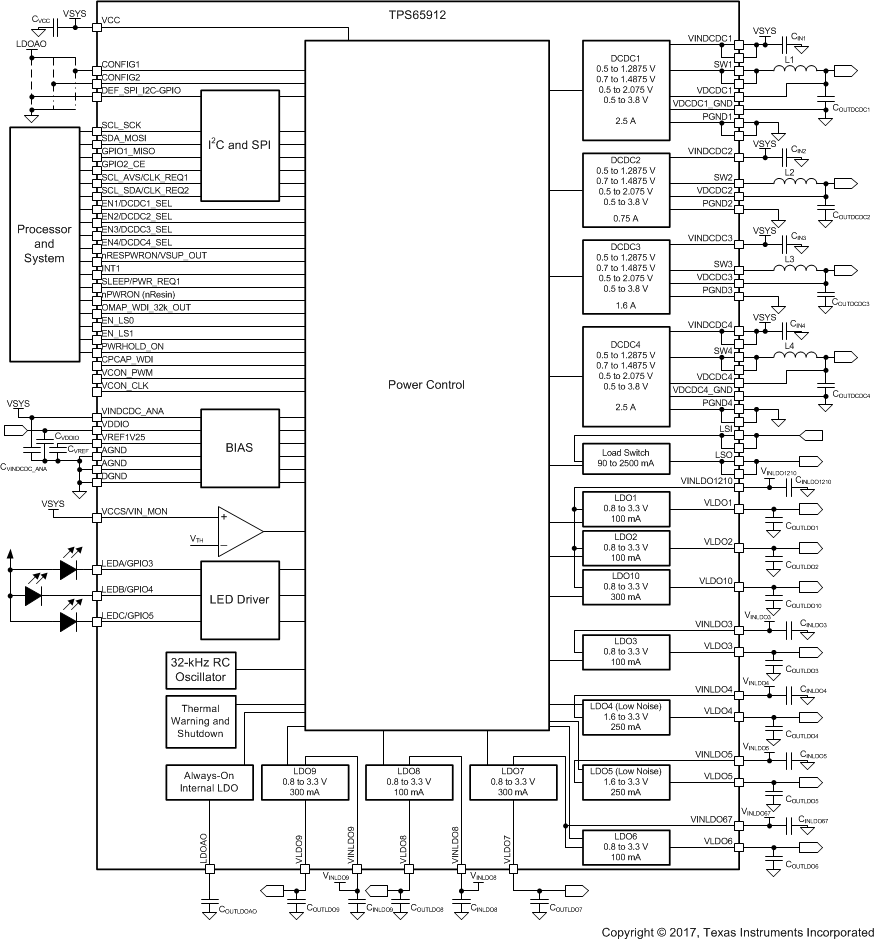

The TPS659128x device provides four configurable step-down converters with up to 2.5-A output current and ten LDO regulators for external use. These LDOs can be supplied from either a battery or a preregulated supply. Each specific part number has a different factory programmed power-up and power-down sequence.

The TPS659128x device integrates a 32-kHz RC oscillator to sequence all resources during power up or power down. All LDOs and DC-DC converters can be controlled by an I2C or SPI interface or basic enable pins after boot. Additionally, a voltage-scaling interface allows for transitioning the DC-DC converters to a different voltage through I2C or basic roof-floor control. Three LED drivers with an advanced dimming feature are integrated inside the device. General-purpose input-output (GPIO) functionality is multiplexed with various pins, including LED pins, ENx pins, and SPI pins when not used. Each GPIO can be configured as part of the power-up sequence to control external resources. One SLEEP pin enables switching between the active mode and preprogrammed sleep mode for power optimization. The TPS659128x device comes in a 9-pin × 9-pin DSBGA package (3.6 mm × 3.6 mm) with a 0.4-mm pitch.

The TPS659128x device provides four configurable step-down converters with up to 2.5-A output current and ten LDO regulators for external use. These LDOs can be supplied from either a battery or a preregulated supply. Each specific part number has a different factory programmed power-up and power-down sequence.

The TPS659128x device integrates a 32-kHz RC oscillator to sequence all resources during power up or power down. All LDOs and DC-DC converters can be controlled by an I2C or SPI interface or basic enable pins after boot. Additionally, a voltage-scaling interface allows for transitioning the DC-DC converters to a different voltage through I2C or basic roof-floor control. Three LED drivers with an advanced dimming feature are integrated inside the device. General-purpose input-output (GPIO) functionality is multiplexed with various pins, including LED pins, ENx pins, and SPI pins when not used. Each GPIO can be configured as part of the power-up sequence to control external resources. One SLEEP pin enables switching between the active mode and preprogrammed sleep mode for power optimization. The TPS659128x device comes in a 9-pin × 9-pin DSBGA package (3.6 mm × 3.6 mm) with a 0.4-mm pitch.
