Texas Instruments TPS565208 Product Info

Parameters

Rating	Catalog
Topology	Buck
Iout (max) (A)	5
Vin (max) (V)	17
Vin (min) (V)	4.5
Vout (max) (V)	7
Vout (min) (V)	0.76
Features	Enable, Forced PWM, Soft Start Fixed, Synchronous Rectification
Control mode	D-CAP2
Operating temperature range (°C)	-40 to 125
Iq (typ) (A)	0.0006
Duty cycle (max) (%)	80

Package

SOT-23-THN (DDC)-6-8.12 mm² 2.9 x 2.8

Features

5-A Maximum Output Current
Integrated 31-mΩ and 16-mΩ FETs
D-CAP2™ Mode Control with Fast Transient Response
Input Voltage Range: 4.5 V to 17 V
Output Voltage Range: 0.76 V to 7 V
Continuous Current Mode
500-kHz Switching Frequency
Low Shutdown Current of Less than 1 µA
1% Feedback Voltage Accuracy
Startup from Pre-biased Output Voltage
Cycle-by-Cycle Current Limit
Hiccup-mode Overcurrent Protection
Non-Latch UVP and TSD Protections
Fixed Soft Start: 1.0 ms
Create a Custom Design Using the TPS565208 With the WEBENCH^® Power Designer

5-A Maximum Output Current
Integrated 31-mΩ and 16-mΩ FETs
D-CAP2™ Mode Control with Fast Transient Response
Input Voltage Range: 4.5 V to 17 V
Output Voltage Range: 0.76 V to 7 V
Continuous Current Mode
500-kHz Switching Frequency
Low Shutdown Current of Less than 1 µA
1% Feedback Voltage Accuracy
Startup from Pre-biased Output Voltage
Cycle-by-Cycle Current Limit
Hiccup-mode Overcurrent Protection
Non-Latch UVP and TSD Protections
Fixed Soft Start: 1.0 ms
Create a Custom Design Using the TPS565208 With the WEBENCH^® Power Designer

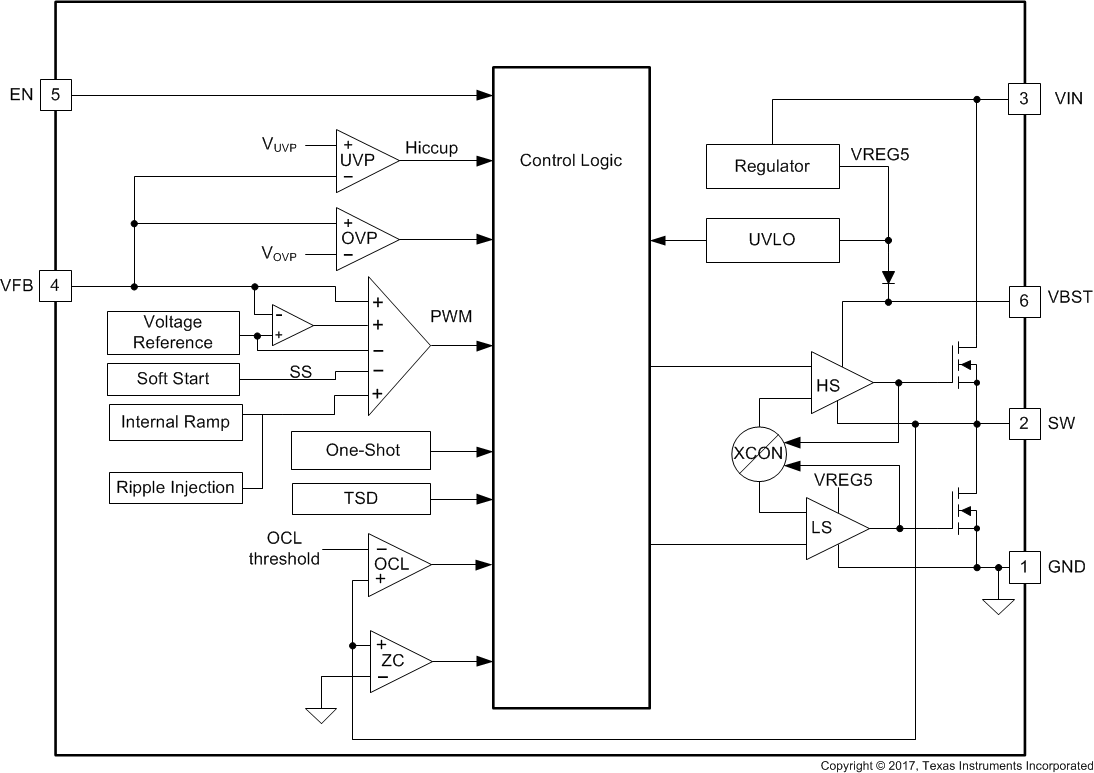

Description

The TPS565208 is a simple, easy-to-use, 5-A synchronous step-down converter in SOT-23 package.

The device is optimized to operate with minimum external component count and also optimized to achieve low standby current.

This switch mode power supply (SMPS) device employs D-CAP2™ mode control, which provides fast transient response and requires no external compensation components. D-CAP2™ also allows the use of low-equivalent series resistance (ESR) specialty polymer capacitors and ceramic capacitors.

The TPS565208 is available in a 6-pin 1.6-mm × 2.9-mm SOT (DDC) package, and operates over a –40°C to 125°C junction temperature range.

The TPS565208 is a simple, easy-to-use, 5-A synchronous step-down converter in SOT-23 package.

The device is optimized to operate with minimum external component count and also optimized to achieve low standby current.

This switch mode power supply (SMPS) device employs D-CAP2™ mode control, which provides fast transient response and requires no external compensation components. D-CAP2™ also allows the use of low-equivalent series resistance (ESR) specialty polymer capacitors and ceramic capacitors.

The TPS565208 is available in a 6-pin 1.6-mm × 2.9-mm SOT (DDC) package, and operates over a –40°C to 125°C junction temperature range.
