- Built-in Audio Protoco
- CD-Quality Uncompressed Audio
- Excellent Robustness and Co-Existence Through Multiple Techniques
- Adaptive Frequency Hopping
- Forward ErrorCorrection
- Buffering and Retransmission
- Error Concealment
- Optional High Quality Audio Compression
- No Software Development Needed When Used in Autonomous Mode
- External System
- Can be Used Autonomously, or can be Controlled by an
External Host MCU for Greatest Flexibility - Seamless Connection and Control of External Audio Codecs, DACs/ADCs and Digital Audio Amplifiers
Using I2S and I2C - HID Functions Like Power Control, Pairing, Volume Control,

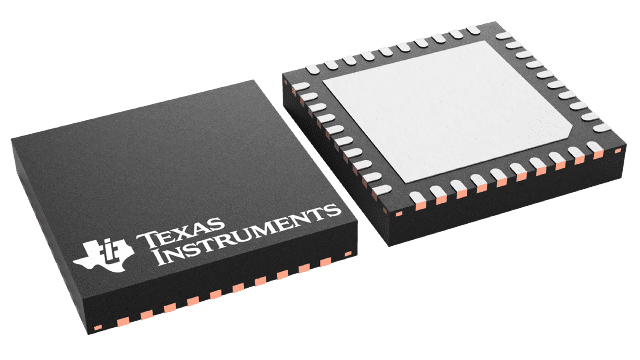

Audio Channel Selection eand so on. Can be Mapped to I/Os - RoHS Compliant 6 mm x 6 mm QFN-40 Package
- RF Section
- 5 or 2 Mbps Over-the-Air Data Rate
- Bandwidth-Efficient Modulation Format
- Excellent Link budget with Programmable Output Power
up to +3.5 dBm and –83 or –86 dBm Sensitivity - Seamless Support for CC2590 Range Extender (+11 dBm Output Power,
–87 dBm Sensitivity) - Suited for Systems Targeting Compliance with Worldwide
Radio Frequency Regulations: ETSI EN 300 328 and EN 300 440 class 2
(Europe)FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan)
- Digital Audio Support
- Digital I2S Audio Interface Supports 1 or 2
Audio Channels for the CC8520 and 1 to 4 Audio Channels for
the CC8530 at Sample Rates of 32, 40.275, 44.1 and 48 kHz, and Supports 16 and 24 bit Word-Widths - Digital I2S Audio Interface Supports 1 or 2 Audio Channels
for the CC8520 and 1 to 4 Audio Channels for the CC8530 at Sample Rates
of 32, 40.275, 44.1 and 48 kHz, and Supports 16 and 24 bit Word-Widths - Audio Latency Down to 10.7 ms
- Data Side-Channel Allows Data to be Sent Alongside the Audio
Between External Host Processors
- USB
- Full-Speed USB Audio Device
- USB Basic Audio Device Class: HT1, HS1 and MT topologies
(Headphone, Headset and Microphone) - USB Audio Device Class
- Basic USB HID Device Class Support for Remote Control, Mouse
and Keyboard Functionality - Autonomous Operation Only
- Development Tools
- PC-Based PurePath™ Wireless Configurator for CC85xx Configuration
- CC85xx Family User Guide
- CC85XXDK Audio Development Kit
- CC85XXDK-HEADSET Development Kit
- Built-in Audio Protoco
- CD-Quality Uncompressed Audio
- Excellent Robustness and Co-Existence Through Multiple Techniques
- Adaptive Frequency Hopping
- Forward ErrorCorrection
- Buffering and Retransmission
- Error Concealment
- Optional High Quality Audio Compression
- No Software Development Needed When Used in Autonomous Mode
- External System
- Can be Used Autonomously, or can be Controlled by an
External Host MCU for Greatest Flexibility - Seamless Connection and Control of External Audio Codecs, DACs/ADCs and Digital Audio Amplifiers
Using I2S and I2C - HID Functions Like Power Control, Pairing, Volume Control,
Audio Channel Selection eand so on. Can be Mapped to I/Os - RoHS Compliant 6 mm x 6 mm QFN-40 Package
- RF Section
- 5 or 2 Mbps Over-the-Air Data Rate
- Bandwidth-Efficient Modulation Format
- Excellent Link budget with Programmable Output Power
up to +3.5 dBm and –83 or –86 dBm Sensitivity - Seamless Support for CC2590 Range Extender (+11 dBm Output Power,
–87 dBm Sensitivity) - Suited for Systems Targeting Compliance with Worldwide
Radio Frequency Regulations: ETSI EN 300 328 and EN 300 440 class 2
(Europe)FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan)
- Digital Audio Support
- Digital I2S Audio Interface Supports 1 or 2
Audio Channels for the CC8520 and 1 to 4 Audio Channels for
the CC8530 at Sample Rates of 32, 40.275, 44.1 and 48 kHz, and Supports 16 and 24 bit Word-Widths - Digital I2S Audio Interface Supports 1 or 2 Audio Channels
for the CC8520 and 1 to 4 Audio Channels for the CC8530 at Sample Rates
of 32, 40.275, 44.1 and 48 kHz, and Supports 16 and 24 bit Word-Widths - Audio Latency Down to 10.7 ms
- Data Side-Channel Allows Data to be Sent Alongside the Audio
Between External Host Processors
- USB
- Full-Speed USB Audio Device
- USB Basic Audio Device Class: HT1, HS1 and MT topologies
(Headphone, Headset and Microphone) - USB Audio Device Class
- Basic USB HID Device Class Support for Remote Control, Mouse
and Keyboard Functionality - Autonomous Operation Only
- Development Tools
- PC-Based PurePath™ Wireless Configurator for CC85xx Configuration
- CC85xx Family User Guide
- CC85XXDK Audio Development Kit
- CC85XXDK-HEADSET Development Kit
0
ACTIVE
