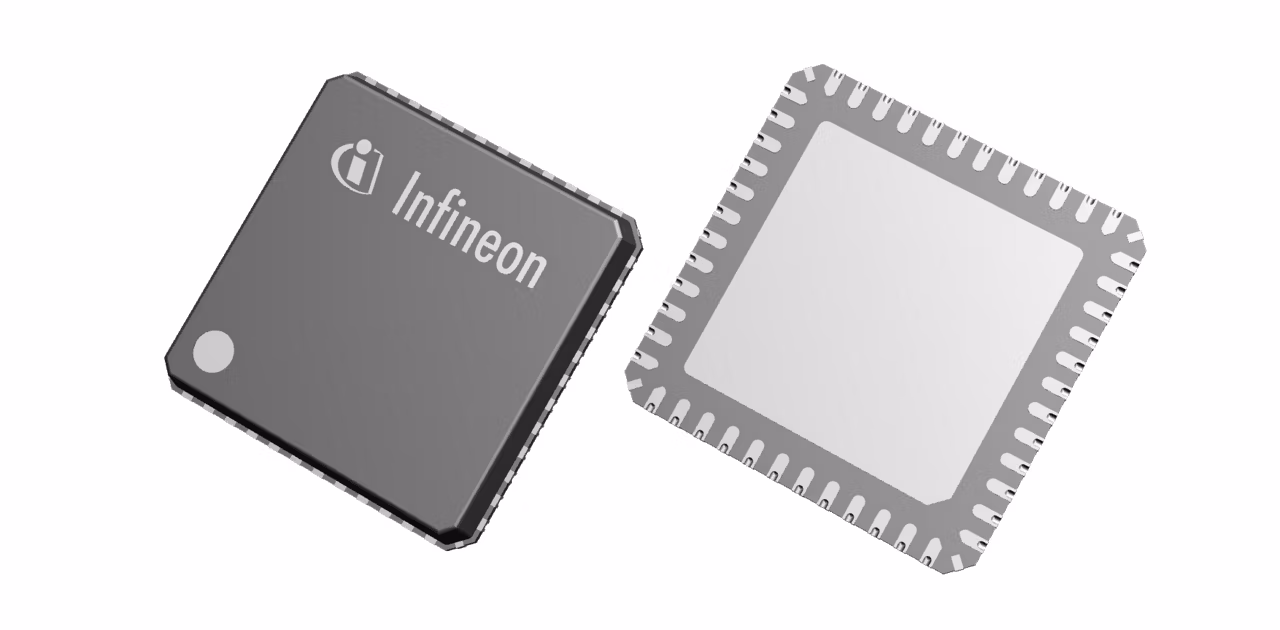

TLE92104-232QX
  • TLE92104-232QX

TLE92104-232QX

Active and preferred

Infineon's MOTIX™ MOSFET driver supports up to 8 n-channel MOSFETs, with Adaptive MOSFET Control for eliminating calibration and optimizing power dissipation and EMC behavior. Ideal for automotive applications like seat control, power lift gates, and body control modules. Features low sleep current, advanced protection, diagnostic capabilities, and integrated motor brake function for enhanced reliability. Also controls dual supply half-bridges

Infineon Technologies TLE92104-232QX Product Info

16 April 2026 0

Parameters

Classification

ISO 26262-ready

Control Interface

PWM, 24 bits SPI

Family

MOTIX™ gate driver ICs for BDC motors

MCU

No

Planned to be available until at least

2039

Power Stage

No

Qualification

Automotive

Supply Voltage absolute max ratings

40 V

Supply Voltage range

6 V to 28 V

Temperature range

-40 °C to 150 °C

Apps

Domain controller for ADAS & autonomous driving, Automotive body electronics & power distribution, Automotive body control module (BCM), Seat control module

Features

  • Adaptive multi-stage MOSFET gate control
  • Drive up to 8 external N-chan. MOSFETS
  • 2x flexible current sense amplifiers
  • 24-bit Serial Peripheral Interface (SPI)
  • Dual-stage pump for reverse protection
  • Drain-source for short circuit detection
  • Current sense for short circuit
  • Timeout watchdog
  • Detailed off-state diagnostic via SPI
  • 3 x PWM inputs (up to 25 kHz)
  • Low current in sleep mode typ. 3 µA
  • Configurable brake mode
  • AEC Q100-qualified

Description

  • Drives up to 4 half-bridges
  • Optimizes PCB space
  • Intelligent motor braking
  • Diagnostic in ON and OFF state
  • Over temperature protection
  • Hard short circuit detection
  • Adaptive driver capability
  • Reverse battery protection
  • Low current consumption in sleep mode
