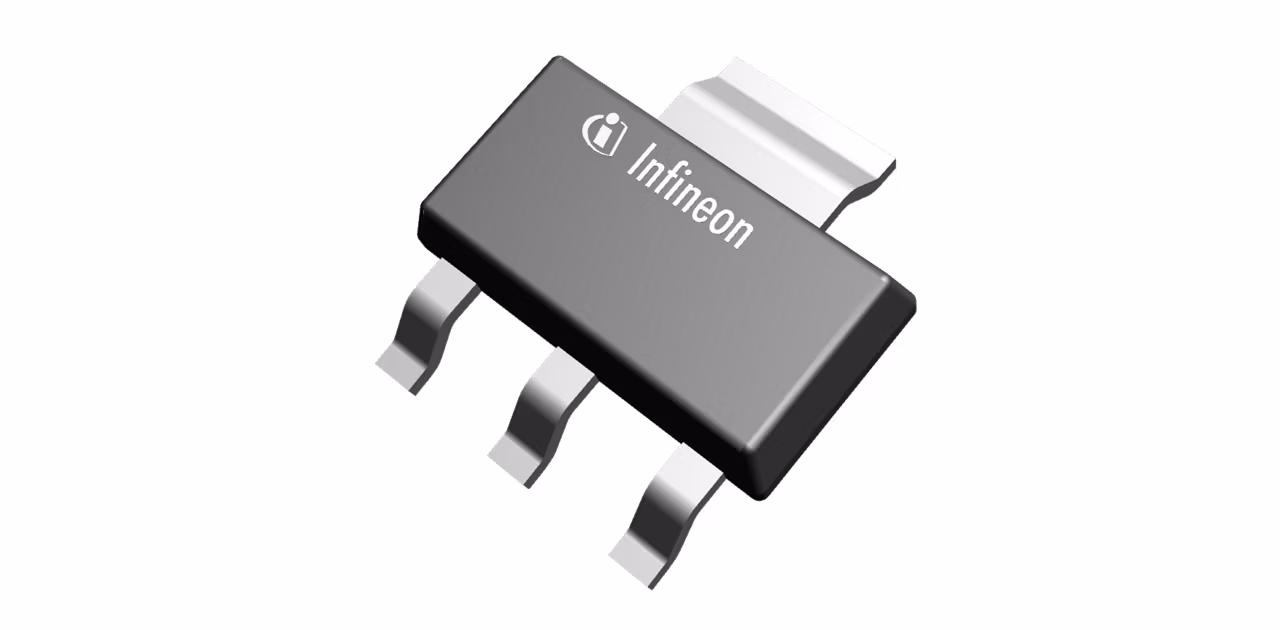

BTS3118N

Active

Infineon Technologies BTS3118N Product Info

16 April 2026 0

Channels	1
Classification	-
Control Interface	Discrete
Diagnostics	-
EAS/Avalanche Energy	250 mJ
EAS (Energy capability)	250 mJ
Family	Classic HITFET™ 12V
ID(lim) min	10 A
ID	2.17 A
IL(nom)	2.17 A
IL (Short Circuit Current)	10 A
Load Current	2.17 A
Mounting	SMT
Nominal Load Current per channel	2.17 A
Operating Temperature range	-40 °C to 150 °C
Planned to be available until at least	2039
Protection strategy	Latch
Ptot max	3.8 W
RDS (on) (@ Tj = 150°C) max	240 mΩ
RDS (on) (@ Tj = 25°C)	90 mΩ
Recommended Operating Voltage max	42 V
toff (Turn OFF time) max	100 µs
ton (Turn ON time) max	100 µs
VDS max	42 V

Automotive body control module (BCM), EV traction inverter
