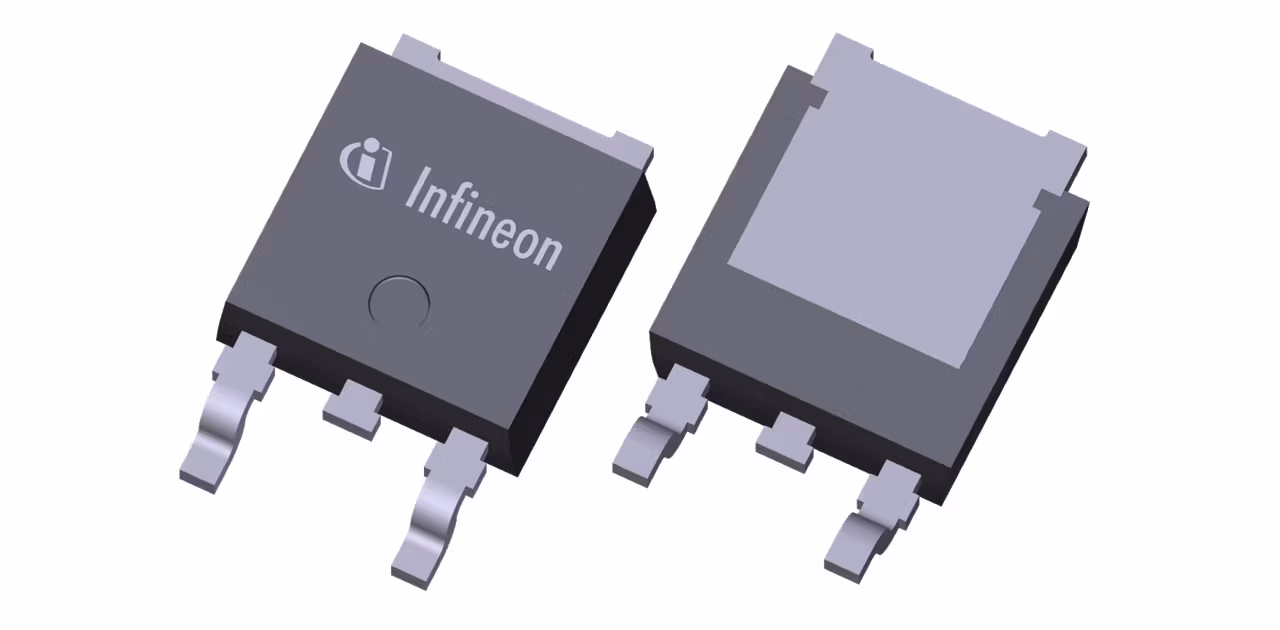

BTS3028SDR
  • BTS3028SDR

BTS3028SDR

Active and preferred

The device is monolithically integrated with a N channel vertical power FET and embedded protection functions. The BTS3028SDR is automotive qualified and can be used in 12V and 24V automotive and industrial applications

Infineon Technologies BTS3028SDR Product Info

16 April 2026 0

Parameters

Channels

1

Classification

-

Control Interface

Discrete

Diagnostic Features

Output Status

Diagnostics

-

EAS/Avalanche Energy

350 mJ

EAS (Energy capability)

350 mJ

Family

Classic HITFET™ 24V

Features

24V COMPATIBLE

ID(lim) min

18 A

ID

5 A

IL(LIM) min

18 A

IL(nom)

5 A

IL (Short Circuit Current)

18 A

Load Current

5.8 A

Mounting

SMT

Nominal Load Current per channel

5 A

Operating Temperature range

-40 °C to 150 °C

Planned to be available until at least

2039

Protection strategy

Auto-restart

RDS (on) (@ Tj = 150°C) max

91 mΩ

RDS (on) (@ Tj = 25°C)

32 mΩ

Recommended Operating Voltage max

60 V

toff (Turn OFF time) max

120 µs

ton (Turn ON time) max

100 µs

VDS max

60 V

Apps

Automotive electric pumps & fans 12 V

Features

  • Short circuit and over load protection
  • Thermal shutdown with latch behavior
  • ESD protection
  • Overvoltage protection
  • 3.3V & 5V compatible logic inputs
  • Analog driving possible
  • 12V and 24V usability
  • Green Product (RoHS compliant)
  • AEC Qualified
