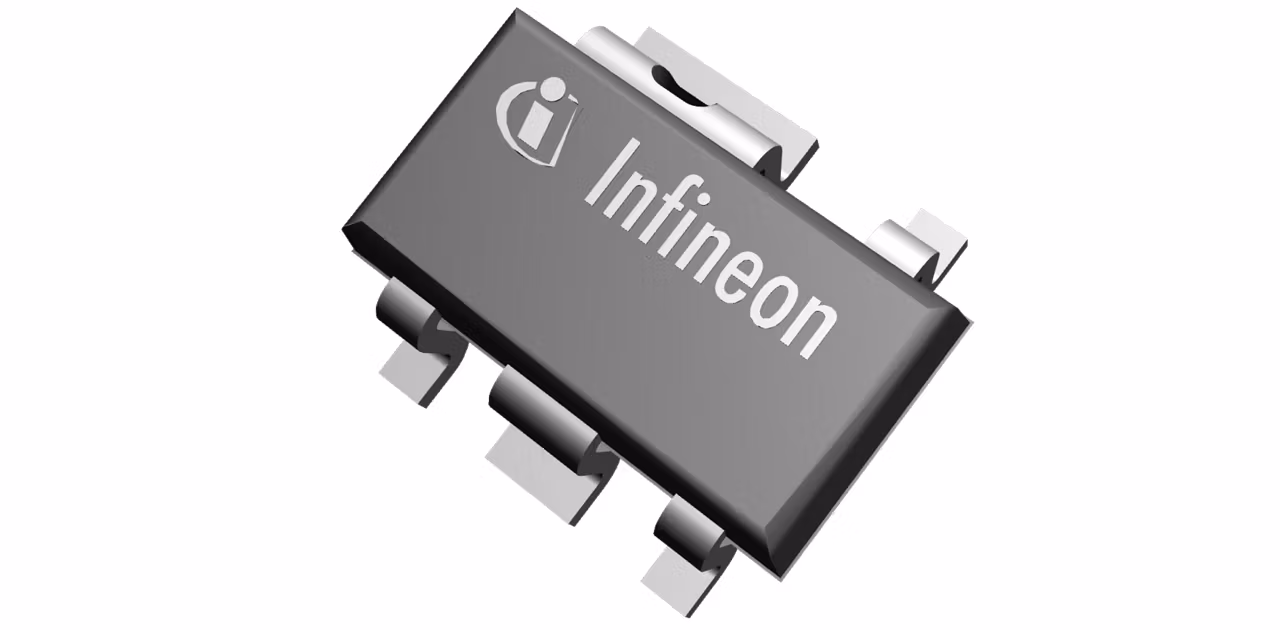

TLS202B1MB V50
  • TLS202B1MB V50

TLS202B1MB V50

Active and preferred

Regulates input voltage up to 18V to a fixed 5.0V output with ±3% precision. Suitable for low standby current applications with connection to preregulators. Enable/disable feature available. Packaged in small PG-SCT595. Protected against overload, short circuit, and overtemperature. Suitable for automotive applications. Also applicable for other 5.0V voltage stabilization needs.

Infineon Technologies TLS202B1MB V50 Product Info

16 April 2026 0

Parameters

Accuracy

3 %

Base Product

TLS202x1MBVxx

Dropout Voltage

290 mV

Early Warning

No

Enable (=Inhibit)

Yes

Family

OPTIREG™ linear Post Regulator

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

2.7 V to 18 V

Output Current max

150 mA

Output Voltage Type

5.0 V

Over Voltage Protection

No

Planned to be available until at least

2037

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

50 µA

Regulator Type

Post Regulator

Reset

No

Status Output

No

Watchdog

No

Apps

Electric vehicle drivetrain system, Automotive BMS, EV traction inverter, On-board charging (OBC), Light electric vehicle solutions

Features

  • Output Voltage: 5.0 V
  • Output Voltage Accuracy of ±3 %
  • Output Currents up to 150 mA
  • Extended I/O V Op Range of 2.7 V to 18 V
  • Enable Functionality
  • Low Dropout Voltage: typ. 290mV
  • Very Low Current Consumption: typ. 50 μA
  • Very Low Shutdown Current: typ. 0.01 μA
  • Very High PSRR: typ. 63dB at 10 kHz
  • Output Current Limitation
  • Short Circuit protected
