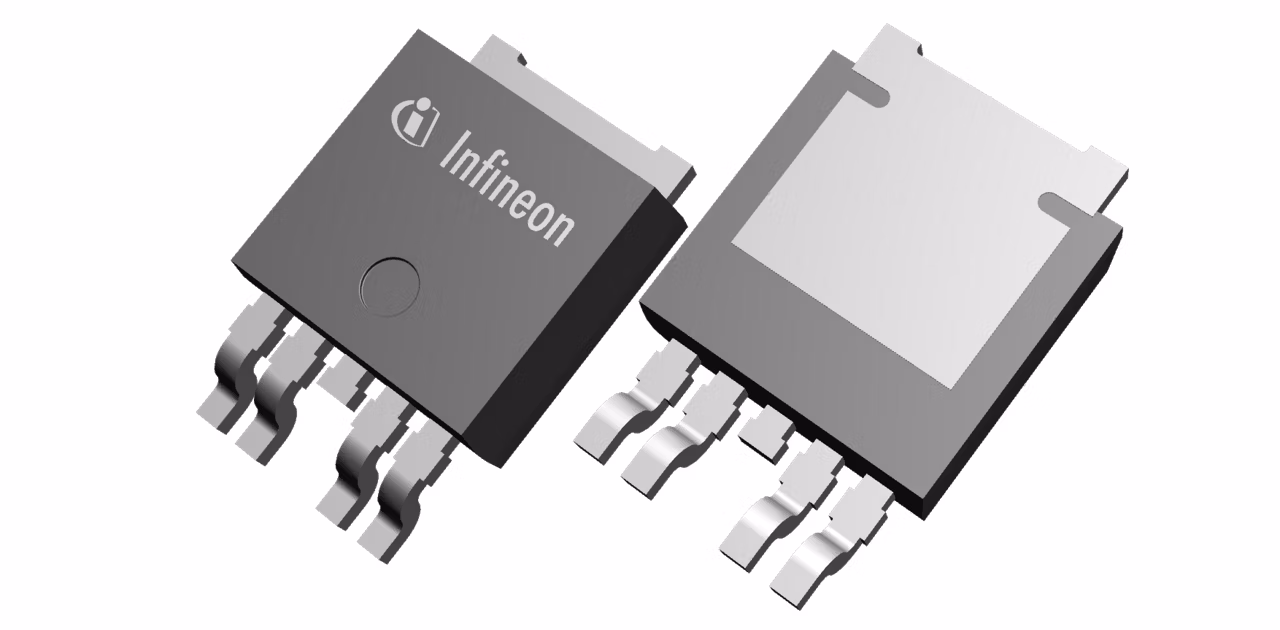

TLF1963TE
  • TLF1963TE

TLF1963TE

Active and preferred

The IC regulates input voltage VI (2.5V < VI < 20V) to adjustable output voltage (1.21V < VQ,nom < VI - Vdr). Supports up to 1.5A loads. Enables on/off control. Protects against failures: short circuit, overcurrent, overtemperature. Ideal for systems with multiple supply voltages (1.21V to input voltage).

Infineon Technologies TLF1963TE Product Info

16 April 2026 0

Parameters

Accuracy

3 %

Dropout Voltage

350 mV

Early Warning

No

Enable (=Inhibit)

Yes

Family

OPTIREG™ linear Post Regulator

Hold

No

Operating Temperature range

-40 °C to 150 °C

Operating Voltage range

2.5 V to 20 V

Output Current max

1500 mA

Output Voltage Type

adj.

Over Voltage Protection

No

Planned to be available until at least

2038

Power Fail

No

Power Good

No

Qualification

Automotive

Quiescent Current

1200 µA

Regulator Type

Post Regulator

Reset

No

Status Output

No

Watchdog

No

Apps

Automotive body control module (BCM), Door control module, Automotive battery management system (BMS) - 48 V, Automotive instrument cluster

Features

  • Adjustable Output Voltage
  • O/P V Tolerance at small loads of ±1.5 %
  • Output Current Capability up to 1.5 A
  • Very Low Dropout Voltage of 340 mV
  • Operating Range Starting at 1.7 V
  • Low Noise of typ. 40 µV
  • Suitable for Ceramic Output Capacitors
  • Enable Functionality
  • Overtemperature Shutdown
  • Reverse Polarity Protection
  • Output Current Limitation

Description

  • Wide input voltage range
  • Output ceramic caps supported
