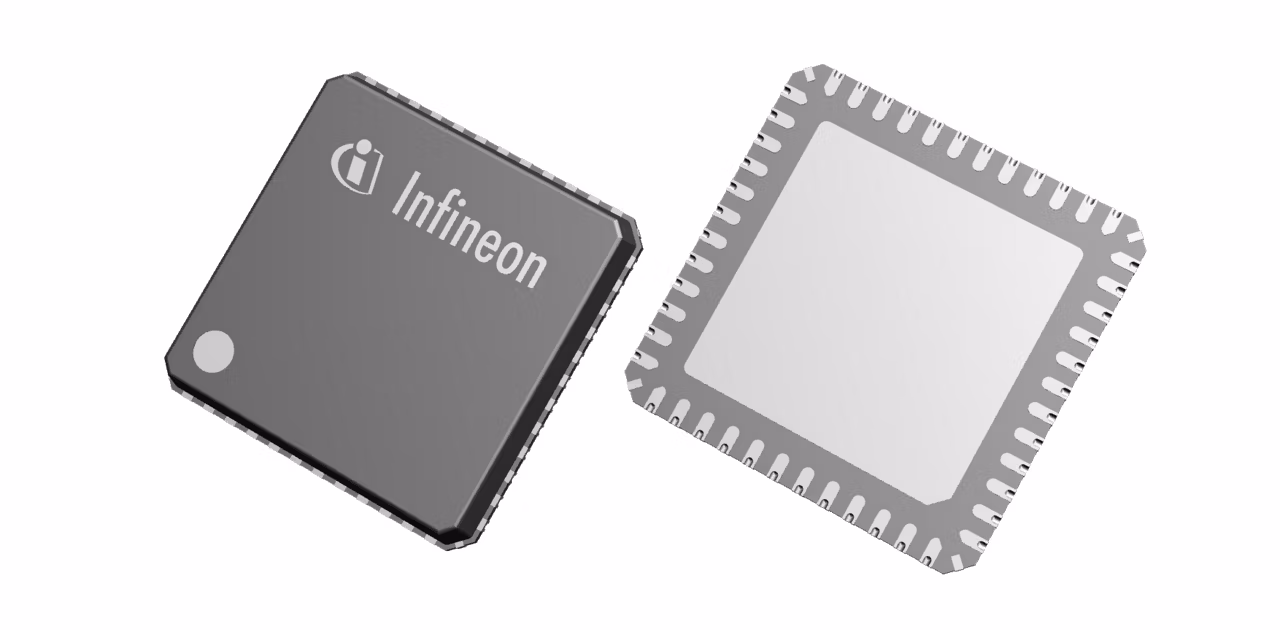

TLE9272QX V33
  • TLE9272QX V33

TLE9272QX V33

Active and preferred

CAN-LIN SBC for automotive applications. Features SMPS for 3.3V supply, LDO for 5V sensor supply, DC/DC Boost converter. HS-CAN transceiver (CAN FD), LIN transceiver. 16-bit SPI. Watchdog, Fail-Safe Input/Outputs, undervoltage reset. Low-power modes. Wake-up via buses, inputs, cyclic wake. Built for automotive conditions.

Infineon Technologies TLE9272QX V33 Product Info

16 April 2026 0

Parameters

Compatible Microcontrollers

TRAVEO™ T1G, T2G, AURIX™ TC2x, TC3x

Family

OPTIREG™ DCDC SBC

Iout

750 mA

Planned to be available until at least

2039

Quiescent Current

30 μA (typ) Sleep Mode

Standby Current

50 μA (typ) Stop Mode

Transceiver

3 x LIN2.2 / J2602, 1 x CAN FD ISO 11898-2

Transmission Rate max

5 MBit/s

VBOOST

8 V, 6.65 V

Voltage Regulator Output ((VCC1))

3.3V / 750 mA

Voltage Regulator Output ((VCC2))

5V / 100 mA

Wake-up Inputs

Wake Pins, CAN, LIN

Apps

Automotive gateway, Automotive body control module (BCM), DC-DC converter high-voltage, EV charging connectivity

Features

  • Very low quiescent in SBC Stop Mode
  • Periodic Cyclic Wake in SBC Normal
  • SMPS 750mA (DC/DC buck) V regulator 3.3V
  • DC/DC Boost for low battery supply V
  • Low-Drop Voltage Regulator 5V/100mA
  • High-Speed CAN IS011898-2:2016
  • 2 LIN Transceivers LIN2.2, SAE J2602
  • Compliant with ATV Hardware Requirements
  • Universal High-Voltage Wake Input
  • Configurable wake-up sources
  • Reset Output
