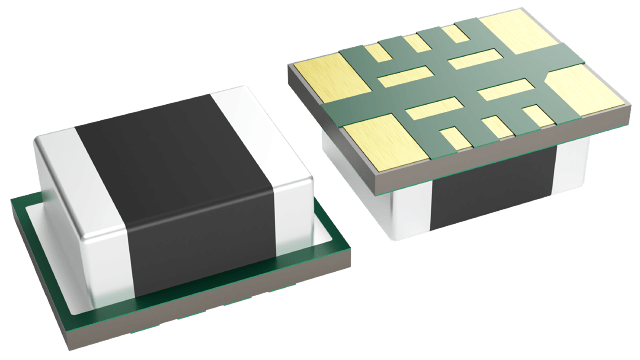

TPSM82816
  • TPSM82816
  • TPSM82816

TPSM82816

ACTIVE

6-V 6-A step-down module with optional frequency synchronization, adjustable soft-start and tracking

Texas Instruments TPSM82816 Product Info

1 April 2026 2

Parameters

Rating

Catalog

Topology

Buck, Step-Down Converter, Synchronous Buck

Iout (max) (A)

6

Vin (max) (V)

6

Vin (min) (V)

2.7

Vout (max) (V)

5.5

Vout (min) (V)

0.6

Features

Adjustable soft start, EMI Tested, Enable, Frequency synchronization, Light Load Efficiency, MagPack technology, Output discharge, Overcurrent protection, Power good, Soft Start Adjustable, Soft-start adjustable, Spread Spectrum, Tracking

EMI features

Low parasitic Hotrod packaging, Spread Spectrum

Operating temperature range (°C)

-40 to 125

Type

Converter (Integrated Switch), DC/DC converter, Module

Duty cycle (max) (%)

100

Control mode

Peak current mode, current mode, current mode control

Switching frequency (min) (kHz)

1800

Switching frequency (max) (kHz)

4000

Package

QFN-FCMOD (VCA)-13-7.5 mm² 3 x 2.5

Features

  • Adjustable and synchronizable switching frequency of 1.8MHz to 4MHz
  • Spread spectrum clocking (optional)
  • Selectable forced PWM or PFM/PWM operation
  • Output voltage accuracy ±1% (PWM operation)
  • Input voltage range: 2.7V to 6V
  • Output voltage range: 0.6V to 5.5V
  • Adjustable soft start or tracking
  • Power-good output with window comparator
  • Precise ENABLE input allows
    • User-defined undervoltage lockout
    • Exact sequencing
  • Optimized for low EMI requirements
    • No bond wire package
    • MagPack technology shields inductor and IC
    • Simplified layout through optimized pinout
  • 100% duty cycle
  • Output discharge
  • Typical quiescent current: 18µA
  • Operating temperature range: –40°C to 125°C
  • Maximum package height: 1.6mm (SIE) / 2.0mm (VCA)
  • Excellent thermal performance
  • Pin-to-pin compatible with:
  • Adjustable and synchronizable switching frequency of 1.8MHz to 4MHz
  • Spread spectrum clocking (optional)
  • Selectable forced PWM or PFM/PWM operation
  • Output voltage accuracy ±1% (PWM operation)
  • Input voltage range: 2.7V to 6V
  • Output voltage range: 0.6V to 5.5V
  • Adjustable soft start or tracking
  • Power-good output with window comparator
  • Precise ENABLE input allows
    • User-defined undervoltage lockout
    • Exact sequencing
  • Optimized for low EMI requirements
    • No bond wire package
    • MagPack technology shields inductor and IC
    • Simplified layout through optimized pinout
  • 100% duty cycle
  • Output discharge
  • Typical quiescent current: 18µA
  • Operating temperature range: –40°C to 125°C
  • Maximum package height: 1.6mm (SIE) / 2.0mm (VCA)
  • Excellent thermal performance
  • Pin-to-pin compatible with:

Description

TPSM8281x are a family of pin-to-pin, 1A, 2A, 3A, 4A, and 6A compatible high efficiency and easy to use synchronous step-down DC/DC power modules with integrated inductors. The devices are based on a fixed-frequency peak current-mode control topology. The devices are used in telecommunication, test and measurement, and medical applications with high power density and ease of use requirements. Low resistance switches allow up to 6A continuous output current at high ambient temperatures. The switching frequency is externally adjustable from 1.8MHz to 4MHz and can also be synchronized to an external clock in the same frequency range. In power save mode, the TPSM8281x automatically enters PFM at light loads to maintain high efficiency across the whole load range. The TPSM8281x provides a 1% output voltage accuracy in PWM mode which helps design a power supply with high output voltage accuracy. The SS/TR pin sets the start-up time or tracks the output voltage to an external source. This action allows external sequencing of different supply rails and limits the inrush current during start-up.
