TS3DS26227

ACTIVE

3.3-V, 2:1 (SPDT), 2-channel differential signal switch with input logic translation

Texas Instruments TS3DS26227 Product Info

1 April 2026 3

Parameters

Protocols

MIPI

Configuration

2:1 SPDT

Number of channels

2

Bandwidth (MHz)

800

Supply voltage (max) (V)

3.6

Supply voltage (min) (V)

2.3

Ron (typ) (mΩ)

3500

Input/output voltage (min) (V)

0

Input/output voltage (max) (V)

3.6

Supply current (typ) (µA)

0.1

ESD HBM (typ) (kV)

4

Operating temperature range (°C)

-40 to 85

Crosstalk (dB)

-39

ESD CDM (kV)

1

Input/output continuous current (max) (mA)

64

COFF (typ) (pF)

3.5

CON (typ) (pF)

10.5

Off isolation (typ) (dB)

-40

OFF-state leakage current (max) (µA)

0.015

Ron (max) (mΩ)

7000

Ron channel match (max) (Ω)

0.2

RON flatness (typ) (Ω)

3

Turnoff time (disable) (max) (ns)

5

Turnon time (enable) (max) (ns)

13

VIH (min) (V)

VIO * .65

VIL (max) (V)

VIO * .35

Rating

Catalog

Package

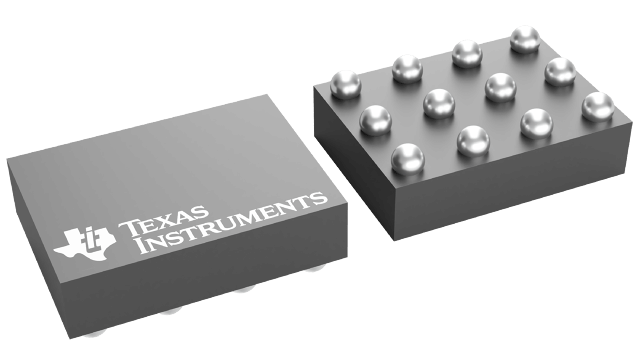

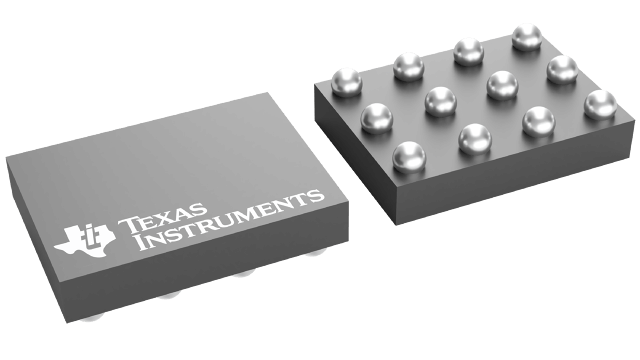

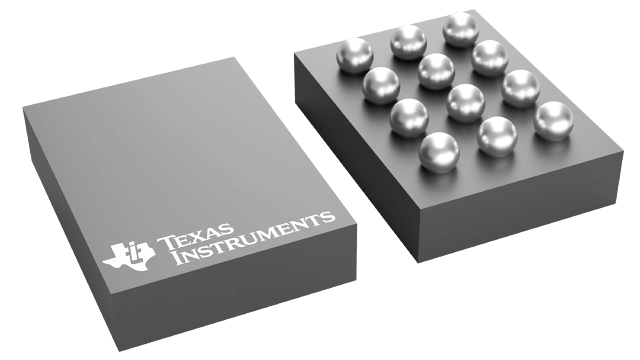

DSBGA (YZT)-12-3.9375 mm² 2.25 x 1.75

Features

  • High-Bandwidth Data Paths – Up to 800 MHz
  • Specified Break-Before-Make Switching
  • Control Inputs Reference to VIO
  • Low Charge Injection
  • Excellent ON-State Resistance Matching
  • Low Total Harmonic Distortion (THD)
  • 2.3-V to 3.6-V Power Supply (V+)
  • 1.65-V to 1.95-V Logic Supply (VIO)
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • ESD Performance Tested Per JESD 22
    • 4000-V Human-Body Model
      (A114-B, Class II)
    • 1000-V Charged-Device Model (C101)
    • 200-V Machine Model (A115-A)
  • High-Bandwidth Data Paths – Up to 800 MHz
  • Specified Break-Before-Make Switching
  • Control Inputs Reference to VIO
  • Low Charge Injection
  • Excellent ON-State Resistance Matching
  • Low Total Harmonic Distortion (THD)
  • 2.3-V to 3.6-V Power Supply (V+)
  • 1.65-V to 1.95-V Logic Supply (VIO)
  • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • ESD Performance Tested Per JESD 22
    • 4000-V Human-Body Model
      (A114-B, Class II)
    • 1000-V Charged-Device Model (C101)
    • 200-V Machine Model (A115-A)

Description

The TS3DS26227 is a dual single-pole double-throw (SPDT) analog switch that is designed to operate from
2.3 V to 3.6 V. The device offers high-bandwidth data paths, and a break-before-make feature to prevent signal distortion during the transferring of a signal from one path to another. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable applications.

The TS3DS26227 has a separate logic supply pin (VIO) that operates from 1.65 V to 1.95 V. VIO powers the control circuitry, which allows the TS3DS26227 to be controlled by 1.8-V signals.
