TS3A44159

ACTIVE

0.4-Ω on-state resistance, 3.3-V, 2:1 (SPDT), 4-channel analog switch

Texas Instruments TS3A44159 Product Info

1 April 2026 5

Parameters

Configuration

2:1 SPDT

Number of channels

4

Power supply voltage - single (V)

1.8, 2.5, 3.3

Protocols

Analog

Ron (typ) (Ω)

0.3

CON (typ) (pF)

162

ON-state leakage current (max) (µA)

0.05

Supply current (typ) (µA)

0.001

Bandwidth (MHz)

35

Operating temperature range (°C)

-40 to 85

Features

1.8-V compatible control inputs, Break-before-make

Input/output continuous current (max) (A)

0.2

Rating

Catalog

Drain supply voltage (max) (V)

4.3

Supply voltage (max) (V)

4.3

Package

TSSOP (PW)-16-32 mm² 5 x 6.4

Features

  • Specified Break-Before-Make Switching
  • Low ON-State Resistance (<0.5 Ω)
  • Control Inputs Are 1.8-V Logic Compatible
  • Low Charge Injection
  • Excellent ON-State Resistance Matching
  • Low Total Harmonic Distortion (THD)
  • 1.65-V to 4.3-V Single-Supply Operation
  • Latch-Up Performance Exceeds 100 mA
    Per JESD 78, Class II
  • ESD Performance Tested Per JESD 22
    • ±2000-V Human-Body Model
      (A114-B, Class II)
    • ±1000-V Charged-Device Model
      (C101)
  • Specified Break-Before-Make Switching
  • Low ON-State Resistance (<0.5 Ω)
  • Control Inputs Are 1.8-V Logic Compatible
  • Low Charge Injection
  • Excellent ON-State Resistance Matching
  • Low Total Harmonic Distortion (THD)
  • 1.65-V to 4.3-V Single-Supply Operation
  • Latch-Up Performance Exceeds 100 mA
    Per JESD 78, Class II
  • ESD Performance Tested Per JESD 22
    • ±2000-V Human-Body Model
      (A114-B, Class II)
    • ±1000-V Charged-Device Model
      (C101)

Description

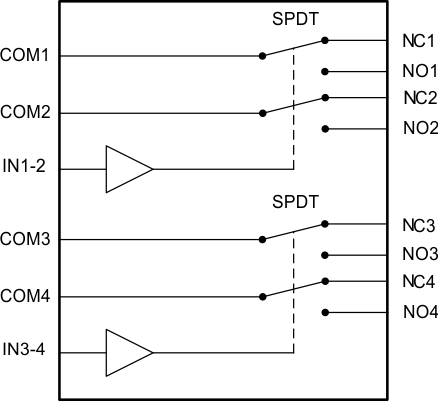

The TS3A44159 is a bidirectional 4-channel single-pole double-throw (SPDT) analog switch with two control inputs, which is designed to operate from 1.65 V to 4.3 V. This device is also known as a 2 channel double-pole double-throw (DPDT) configuration. It offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature that prevents signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications
