ACTIVE
Configuration |
2:1 SPDT |
Number of channels |
2 |
Power supply voltage - single (V) |
1.8, 2.5, 3.3 |
Protocols |
Analog, I2C, UART |
Ron (typ) (Ω) |
0.45 |
CON (typ) (pF) |
140 |
ON-state leakage current (max) (µA) |
0.4 |
Supply current (typ) (µA) |
0.01 |
Bandwidth (MHz) |
50 |
Operating temperature range (°C) |
-40 to 85 |
Features |
1.8-V compatible control inputs, Break-before-make |
Input/output continuous current (max) (A) |
0.3 |
Rating |
Catalog |
Drain supply voltage (max) (V) |
3.6 |
Supply voltage (max) (V) |
3.6 |
UQFN (RSE)-10-3 mm² 2 x 1.5

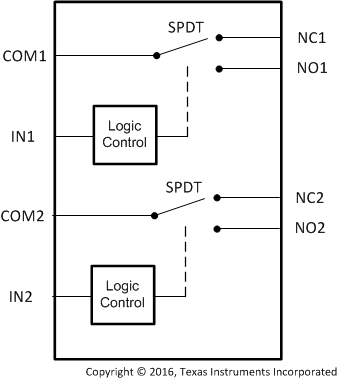

The TS3A24157 is a bidirectional, 2-channel, single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 3.6 V. The device offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature, to prevent signal distortion during the transfer of a signal from one channel to another. The device has excellent total harmonic distortion (THD) performance and consumes very-low power. These features make this device suitable for portable audio applications.
