0
ACTIVE
Configuration |
2:1 SPDT |
Number of channels |
1 |
Power supply voltage - single (V) |
2.5, 3.3, 5 |
Protocols |
Analog |
Ron (typ) (Ω) |
5.3 |
CON (typ) (pF) |
8.5 |
ON-state leakage current (max) (µA) |
0.003 |
Supply current (typ) (µA) |
0.01 |
Bandwidth (MHz) |
100 |
Operating temperature range (°C) |
-40 to 85 |
Features |
Break-before-make |
Input/output continuous current (max) (A) |
0.05 |
Rating |
Catalog |
Drain supply voltage (max) (V) |
5.5 |
Supply voltage (max) (V) |
5.5 |

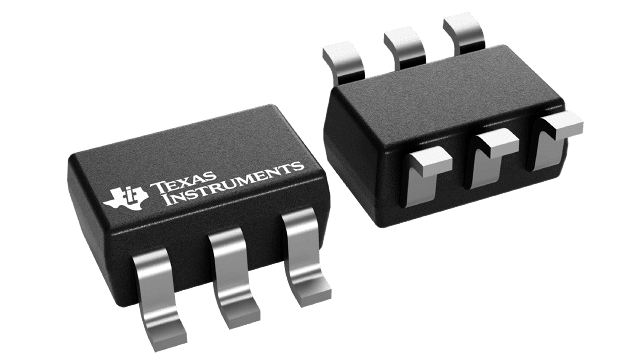

SOT-SC70 (DCK)-6-4.2 mm² 2 x 2.1

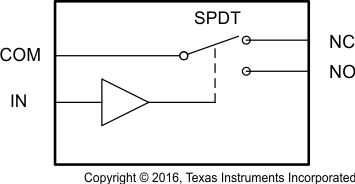

The TS5A9411 device is a bidirectional, single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device offers low ON-state resistance, low leakage, and low power with a break-before-make feature. These features make this device suitable for portable and battery-powered applications.
