ACTIVE
Configuration |
2:1 SPDT |
Number of channels |
2 |
Power supply voltage - single (V) |
2.5, 3.3, 5 |
Protocols |
Analog |
Ron (typ) (Ω) |
0.5 |
CON (typ) (pF) |
130 |
ON-state leakage current (max) (µA) |
0.2 |
Supply current (typ) (µA) |
0.001 |
Bandwidth (MHz) |
43 |
Operating temperature range (°C) |
-40 to 85 |
Features |
1.8-V compatible control inputs, Break-before-make |
Input/output continuous current (max) (A) |
0.45 |
Rating |
Catalog |
Drain supply voltage (max) (V) |
5.5 |
Supply voltage (max) (V) |
5.5 |
DSBGA (YZT)-12-3.9375 mm² 2.25 x 1.75
Max)NanoFree Is a trademark of Texas Instruments

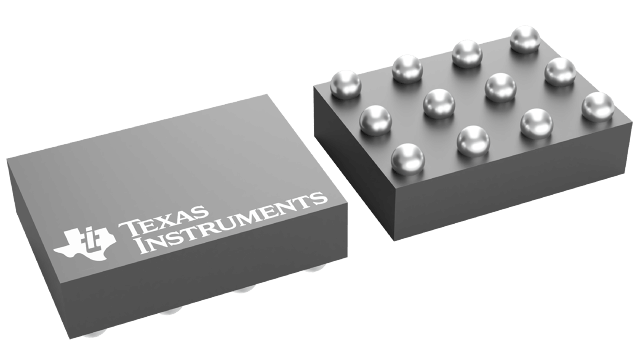

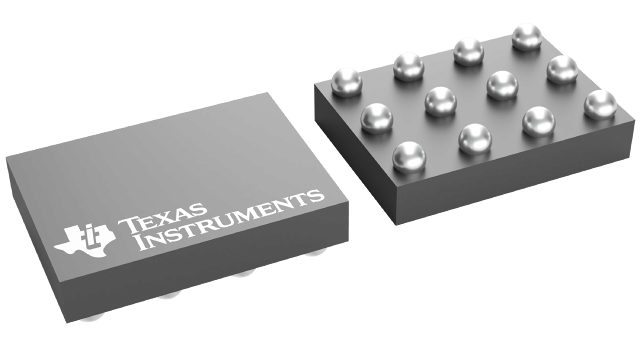

The TS5A26542 is a dual single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device offers a low ON-state resistance with an excellent channel-to-channel ON-state resistance matching, and the break-before-make feature to prevent signal distortion during the transferring of a signal from one path to the another. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
The TS5A26542 has a separate logic supply pin (VIO) that operates from 1.65 V to 1.95 V. VIO powers the control circuitry, which allows the TS5A26542 to be controlled by 1.8-V signals.
