ACTIVE
Rating |
HiRel Enhanced Product |
Vin (max) (V) |
-3 |
Vin (min) (V) |
-36 |
Iout (max) (A) |
0.2 |
Output options |
Adjustable Output, Negative Output |
Vout (max) (V) |
-1.2 |
Vout (min) (V) |
-33 |
Noise (µVrms) |
15 |
PSRR at 100 KHz (dB) |
55 |
Iq (typ) (mA) |
0.05 |
Features |
Enable, Soft start |
Thermal resistance θJA (°C/W) |
69.3 |
Load capacitance (min) (µF) |
2.2 |
Regulated outputs (#) |
1 |
Accuracy (%) |
2.5 |
Dropout voltage (Vdo) (typ) (mV) |
216 |
Operating temperature range (°C) |
-55 to 125 |
HVSSOP (DGN)-8-14.7 mm² 3 x 4.9
The TPS7A3001 is a negative, high-voltage (–36V), ultralow-noise (15.1µVRMS, 72dB PSRR) linear regulator capable of sourcing a maximum load of 200mA.
These linear regulators include a CMOS logic-level-compatible enable pin and capacitor-programmable soft-start function that allows for customized power-management schemes. Other features available include built-in current limit and thermal shutdown protection to safeguard the device and system during fault conditions.
The TPS7A3001 is designed using bipolar technology, and is ideal for high-accuracy, high-precision instrumentation applications where clean voltage rails are critical to maximize system performance. This design makes it an excellent choice to power operational amplifiers, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and other high-performance analog circuitry.
In addition, the TPS7A3001 of linear regulators is suitable for post dc/dc converter regulation. By filtering out the output voltage ripple inherent to dc/dc switching conversion, maximum system performance is provided in sensitive instrumentation, test and measurement, audio, and RF applications.

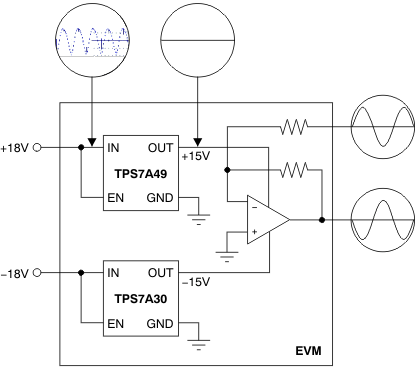

For applications where positive and negative high-performance rails are required, consider TI’s TPS7A49xx family of positive high-voltage, ultralow-noise linear regulators.
