Texas Instruments SN74HCS573 Product Info

Parameters

Number of channels	8
Technology family	HCS
Supply voltage (min) (V)	2
Supply voltage (max) (V)	6
Input type	Schmitt-Trigger
Output type	3-State
Clock frequency (max) (MHz)	135
IOL (max) (mA)	7.8
IOH (max) (mA)	-7.8
Supply current (max) (µA)	2
Features	Balanced outputs, High speed (tpd 10-50ns), Positive input clamp diode
Operating temperature range (°C)	-40 to 125
Rating	Catalog

Package

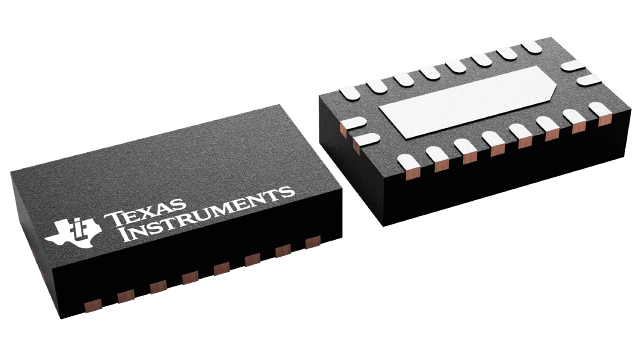

VQFN (RKS)-20-11.25 mm² 4.5 x 2.5

Features

Wide operating voltage range: 2 V to 6 V

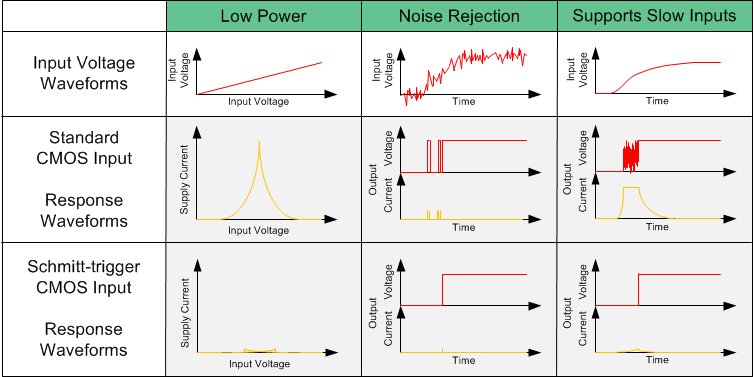

Schmitt-trigger inputs allow for slow or noisy input signals
Low power consumption
- Typical I_CC of 100 nA
- Typical input leakage current of ±100 nA
±7.8-mA output drive at 6 V
Extended ambient temperature range: –40°C to +125°C, T_A

Wide operating voltage range: 2 V to 6 V
Schmitt-trigger inputs allow for slow or noisy input signals
Low power consumption
- Typical I_CC of 100 nA
- Typical input leakage current of ±100 nA
±7.8-mA output drive at 6 V
Extended ambient temperature range: –40°C to +125°C, T_A

Description

The SN74HCS573 contains eight D-type latches. All inputs include Schmitt-trigger architecture. All channels share a latch enable (LE) input and output enable (OE) input. This device has a flow-through pinout which allows for easier bus routing.
