Texas Instruments TPS61382-Q1 Product Info

Parameters

Rating	Automotive
Topology	Boost, Buck, Buck/Boost
Vin (max) (V)	3.8
Vin (min) (V)	0.5
Vout (max) (V)	12
Vout (min) (V)	5
Switch current limit (typ) (A)	15
Features	Adjustable current limit, Bidirectional, Enable, I2C interface, Spread-spectrum clocking (SSC), Synchronous rectification
EMI features	Frequency Dithering, Spread Spectrum
Control mode	current mode
Operating temperature range (°C)	-40 to 150
Iq (typ) (A)	0.00002
Duty cycle (max) (%)	90

Package

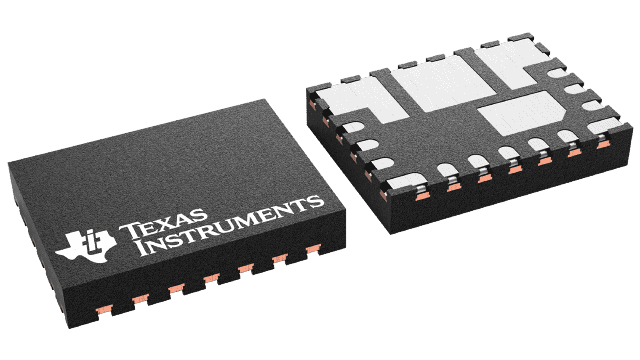

WQFN-FCRLF (RAV)-24-12 mm² 4 x 3

Features

AEC-Q100 qualified for automotive applications
- Device temperature grade 1: –40°C to 125°C ambient operating temperature range
I2C programmable buck/LDO charger
- Supports charger input voltage (VOUT Pin) up to 21V, absmax up to 40V to withstand load dump
- Supports multi-chemistry battery charging profile of 1-2cell NiMH, 1cell Li-Ion, LiFePO4, 1 cell super capacitor
- Programmable charging current up to 3A
- Battery voltage operating range 0V to 3.8V
- Programmable charging timer up to 32h
- NTC thermistor input to monitor battery temperature
Programmable boost converter supporting 12V car battery backup power system
- Programmable output voltage range: 5V to 12V
- Programmable boost average input current limit from 5A to 15A
- Back-up battery (BUB) voltage in boost mode: 0.5V to 3.8V
  - Minimum 3V for start up when Vout<2.8V
  - Minimum 1V for start up when Vout>2.8V
- <20us automatic transition into the boost mode when 12V system voltage drops
Backup battery state-of-health(SOH) detection
- Adjustable discharge current from 0A to 1.5A
- Multi-signal analog output (AVI pin) of battery voltage, discharge current and battery temperature
Lower quiescent current and leakage current
- 20µA quiescent current in standby mode
- < 1µA shutdown current
- < 1µA leakage current for pins connected to the backup battery
EMI mitigation
- 400kHz fix switching frequency
- Optional programmable spread spectrum
3mm × 4mm 25-pin package with wettable flank

AEC-Q100 qualified for automotive applications
- Device temperature grade 1: –40°C to 125°C ambient operating temperature range
I2C programmable buck/LDO charger
- Supports charger input voltage (VOUT Pin) up to 21V, absmax up to 40V to withstand load dump
- Supports multi-chemistry battery charging profile of 1-2cell NiMH, 1cell Li-Ion, LiFePO4, 1 cell super capacitor
- Programmable charging current up to 3A
- Battery voltage operating range 0V to 3.8V
- Programmable charging timer up to 32h
- NTC thermistor input to monitor battery temperature
Programmable boost converter supporting 12V car battery backup power system
- Programmable output voltage range: 5V to 12V
- Programmable boost average input current limit from 5A to 15A
- Back-up battery (BUB) voltage in boost mode: 0.5V to 3.8V
  - Minimum 3V for start up when Vout<2.8V
  - Minimum 1V for start up when Vout>2.8V
- <20us automatic transition into the boost mode when 12V system voltage drops
Backup battery state-of-health(SOH) detection
- Adjustable discharge current from 0A to 1.5A
- Multi-signal analog output (AVI pin) of battery voltage, discharge current and battery temperature
Lower quiescent current and leakage current
- 20µA quiescent current in standby mode
- < 1µA shutdown current
- < 1µA leakage current for pins connected to the backup battery
EMI mitigation
- 400kHz fix switching frequency
- Optional programmable spread spectrum
3mm × 4mm 25-pin package with wettable flank

Description

The TPS61382Q1 is 400kHz, 40V, 15A automotive bi-directional boost converter/ buck charger with battery state of health detection function for back-up power like TBOX. The converter supports absmax voltage up to 40V on VOUT pin to withstand load-dump and supports connecting to 12V car battery.

The TPS61382Q1 integrates I2C configurable buck/LDO charger supporting NiMH, Li-Ion, LiFePO4, super capacitor.

TPS61382Q1 integrates boost function that operates over 0.5V to 3.8V BUB voltage and 5-12V output voltage. The device applies fix frequency peak current control scheme with optional spread spectrum to minimize EMI. The boost function supports 5A-15A programmable average current limit.

The TPS61382Q1 integrates battery health detection feature which discharges the battery with a constant current and detects the voltage drop across the battery internal resistance.

The TPS61382Q1 is available in a 3mm × 4mm QFN package with wettable flank. Care needs to be taken when designing the PCB with TPS61382Q1, view for details.

The TPS61382Q1 is 400kHz, 40V, 15A automotive bi-directional boost converter/ buck charger with battery state of health detection function for back-up power like TBOX. The converter supports absmax voltage up to 40V on VOUT pin to withstand load-dump and supports connecting to 12V car battery.

The TPS61382Q1 integrates I2C configurable buck/LDO charger supporting NiMH, Li-Ion, LiFePO4, super capacitor.

TPS61382Q1 integrates boost function that operates over 0.5V to 3.8V BUB voltage and 5-12V output voltage. The device applies fix frequency peak current control scheme with optional spread spectrum to minimize EMI. The boost function supports 5A-15A programmable average current limit.

The TPS61382Q1 integrates battery health detection feature which discharges the battery with a constant current and detects the voltage drop across the battery internal resistance.

The TPS61382Q1 is available in a 3mm × 4mm QFN package with wettable flank. Care needs to be taken when designing the PCB with TPS61382Q1, view for details.
