TPS22908
  • TPS22908
  • TPS22908

TPS22908

ACTIVE

3.6-V, 1-A, 28-mΩ load switch with output discharge

Texas Instruments TPS22908 Product Info

1 April 2026 1

Parameters

Imax (A)

1

Vin (max) (V)

3.6

Vin (min) (V)

1

Number of channels

1

Features

Inrush current control, Quick output discharge

Quiescent current (Iq) (typ) (µA)

1

Soft start

Fixed Rise Time

Rating

Catalog

Ron (typ) (mΩ)

28

Shutdown current (ISD) (typ) (µA)

1

Current limit type

None

Function

Inrush current control

FET

Internal

Operating temperature range (°C)

-40 to 85

Device type

Load switches

Package

DSBGA (YZT)-4-1.5625 mm² 1.25 x 1.25

Features

  • Integrated P-Channel Load Switch
  • Input Voltage: 1 V to 3.6 V
  • 1 A Maximum Continuous Switch Current
  • On-Resistance (Typical Values)
    • RON = 28 mΩ at VIN = 3.6 V
    • RON = 33 mΩ at VIN = 2.5 V
    • RON = 42 mΩ at VIN = 1.8 V
    • RON = 70 mΩ at VIN = 1.2 V
  • Maximum Quiescent Current = 1 µA
  • Maximum Shutdown Current = 1 µA
  • Low Control Input Thresholds Enable Use of 1.2-
    V, 1.8-V, 2.5-V, and 3.3-V Logic
  • Controlled Slew Rate to Avoid Inrush Currents
    • tR = 105 µs at VIN = 3.6V
  • Four Terminal Wafer-Chip-Scale Package
    (WCSP)
    • Nominal Dimensions - See Addendum for
      Details
    • 0.9 mm × 0.9 mm, 0.5-mm Pitch, 0.6-mm
      Height
  • Quick Output Discharge (QOD)
  • Integrated P-Channel Load Switch
  • Input Voltage: 1 V to 3.6 V
  • 1 A Maximum Continuous Switch Current
  • On-Resistance (Typical Values)
    • RON = 28 mΩ at VIN = 3.6 V
    • RON = 33 mΩ at VIN = 2.5 V
    • RON = 42 mΩ at VIN = 1.8 V
    • RON = 70 mΩ at VIN = 1.2 V
  • Maximum Quiescent Current = 1 µA
  • Maximum Shutdown Current = 1 µA
  • Low Control Input Thresholds Enable Use of 1.2-
    V, 1.8-V, 2.5-V, and 3.3-V Logic
  • Controlled Slew Rate to Avoid Inrush Currents
    • tR = 105 µs at VIN = 3.6V
  • Four Terminal Wafer-Chip-Scale Package
    (WCSP)
    • Nominal Dimensions - See Addendum for
      Details
    • 0.9 mm × 0.9 mm, 0.5-mm Pitch, 0.6-mm
      Height
  • Quick Output Discharge (QOD)

Description

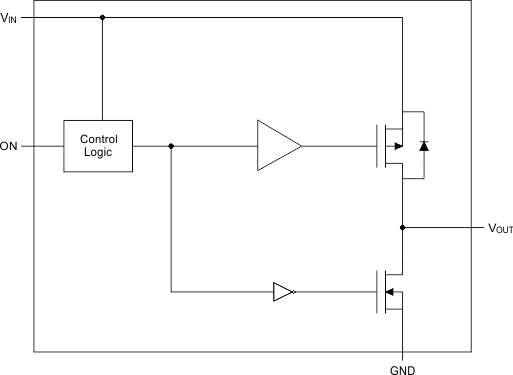

The TPS22908 is a small, low RON load switch with controlled turn on. The device contains a P-channel MOSFET that operates over an input voltage range of 1 V to 3.6 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.

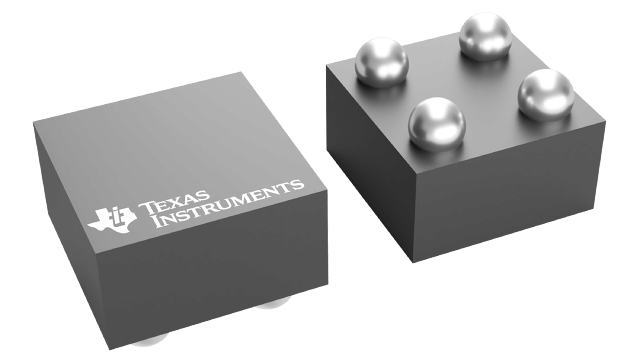

The TPS22908 is available in a space-saving 4-terminal WCSP with 0.5 mm pitch (YZT). The device is characterized for operation over the free-air temperature range of –40°C to 85°C.

The TPS22908 is a small, low RON load switch with controlled turn on. The device contains a P-channel MOSFET that operates over an input voltage range of 1 V to 3.6 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.

The TPS22908 is available in a space-saving 4-terminal WCSP with 0.5 mm pitch (YZT). The device is characterized for operation over the free-air temperature range of –40°C to 85°C.
