Technology family |
LVC |
Supply voltage (min) (V) |
1.65 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
1 |
Inputs per channel |
2 |
IOL (max) (mA) |
32 |
IOH (max) (mA) |
-32 |
Input type |
Standard CMOS |
Output type |
Push-Pull |
Features |
Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns) |
Data rate (max) (Mbps) |
100 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

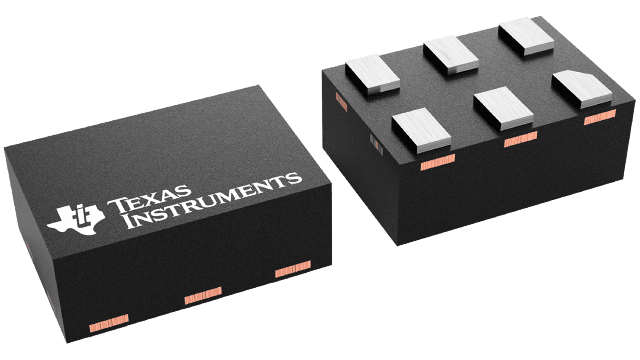

This single 2-input positive-AND gate is designed for 1.65-V to 5.5-V VCC operation.
The SN74LVC1G08-Q1 device performs the Boolean function or in positive logic.
This device is fully specified for partial-power-down applications using I off. The I off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
The CMOS device has high output drive while maintaining low static power dissipation over a broad VCC operating range.
The SN74LVC1G08 is available in a variety of packages, including the small DRY package with a body size of 1.45 mm × 1.00 mm.
