ACTIVE
Technology family |
AC |
Supply voltage (min) (V) |
1.5 |
Supply voltage (max) (V) |
6 |
Number of channels |
8 |
IOL (max) (mA) |
24 |
Supply current (max) (µA) |
20 |
IOH (max) (mA) |
0 |
Input type |
CMOS |
Output type |
Open-drain |
Features |
Input clamp diode, Very high speed (tpd 5-10ns) |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
TSSOP (PW)-20-41.6 mm² 6.5 x 6.4

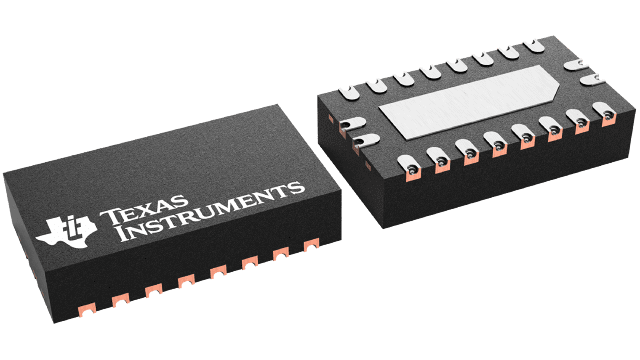

The SN74AC7541-Q1 contains eight independent buffers with open-drain outputs. All channels can be simultaneously forced into the high-impedance state using either of the output enable inputs (OE1 or OE2).
