Texas Instruments LMZ34002 Product Info

Parameters

Rating	Catalog
Topology	Inverting
Iout (max) (A)	2
Vin (max) (V)	40
Vin (min) (V)	4.5
Vout (max) (V)	-3
Vout (min) (V)	-17
Features	EMI Tested, Enable, Negative Output
Operating temperature range (°C)	-40 to 85
Type	Module

Package

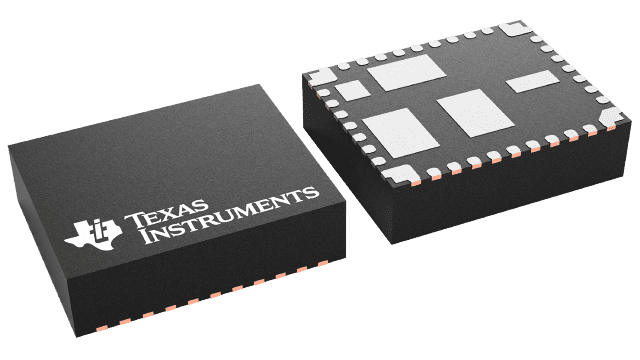

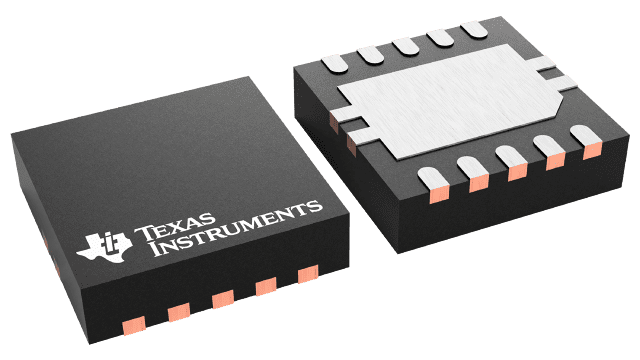

B1QFN (RKG)-41-99 mm² 11 x 9

Features

Complete Integrated Power Solution Allows
Small Footprint, Low-Profile Design
Wide Input Voltage Range from 4.5 V to 40 V
Output Adjustable from –3 V to –17 V
Supplies up to 2-A of Output Current
45-V Surge Capability
Synchronizes to an External Clock
Adjustable Slow-Start
Programmable Undervoltage Lockout (UVLO)
Output Overcurrent Protection
Over Temperature Protection
Operating Temperature Range: –40°C to +85°C
Enhanced Thermal Performance: 14°C/W
Meets EN55022 Class B Emissions
- Integrated Shielded Inductor
For Design Help visit http://www.ti.com/product/lmz34002
Create a Custom Design Using the LMZ34002 With the WEBENCH^® Power Designer

Complete Integrated Power Solution Allows
Small Footprint, Low-Profile Design
Wide Input Voltage Range from 4.5 V to 40 V
Output Adjustable from –3 V to –17 V
Supplies up to 2-A of Output Current
45-V Surge Capability
Synchronizes to an External Clock
Adjustable Slow-Start
Programmable Undervoltage Lockout (UVLO)
Output Overcurrent Protection
Over Temperature Protection
Operating Temperature Range: –40°C to +85°C
Enhanced Thermal Performance: 14°C/W
Meets EN55022 Class B Emissions
- Integrated Shielded Inductor
For Design Help visit http://www.ti.com/product/lmz34002
Create a Custom Design Using the LMZ34002 With the WEBENCH^® Power Designer

Description

The LMZ34002 SIMPLE SWITCHER® power module is an easy-to-use, negative output voltage power module that combines a 15-W DC-DC converter with a shielded inductor, and passives into a low profile, QFN package. This total power solution allows as few as five external components and eliminates the loop compensation and magnetics part selection process.

The 9×11×2.8 mm QFN package is easy to solder onto a printed circuit board and allows a compact design with fewer components and excellent power dissipation capability. The LMZ34002 offers the flexibility and the feature-set of a discrete design and is ideal for powering a wide range of ICs and analog circuits requiring a negative output voltage. Advanced packaging technology affords a robust and reliable power solution compatible with standard QFN mounting and testing techniques.

The LMZ34002 SIMPLE SWITCHER® power module is an easy-to-use, negative output voltage power module that combines a 15-W DC-DC converter with a shielded inductor, and passives into a low profile, QFN package. This total power solution allows as few as five external components and eliminates the loop compensation and magnetics part selection process.

The 9×11×2.8 mm QFN package is easy to solder onto a printed circuit board and allows a compact design with fewer components and excellent power dissipation capability. The LMZ34002 offers the flexibility and the feature-set of a discrete design and is ideal for powering a wide range of ICs and analog circuits requiring a negative output voltage. Advanced packaging technology affords a robust and reliable power solution compatible with standard QFN mounting and testing techniques.
