ACTIVE
Rating |
Catalog |
Topology |
Buck |
Vin (max) (V) |
26.4 |
Vin (min) (V) |
21.6 |
Features |
2W, Regulated, Single output |
Device type |
Isolated modules |
Regulated outputs (#) |
1 |
Operating temperature range (°C) |
-40 to 70 |
Control mode |
Voltage mode |

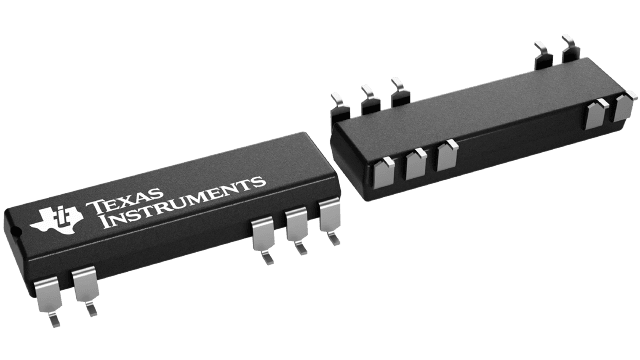

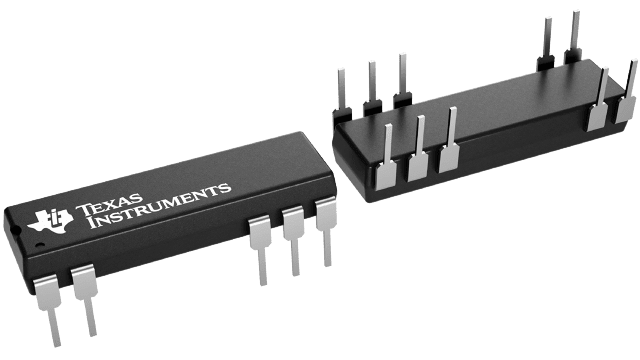

PDIP (NVE)-10-214.884 mm² 22.86 x 9.4
The DCR02 family is a series of high-efficiency, input-isolated, output-regulated DC/DC converters. In addition to 2-W nominal, galvanically-isolated output power capability, this range of converters offers very low output noise and high accuracy.
The DCR02 family is implemented in standard molded device packaging, providing standard JEDEC outlines suitable for high-volume assembly. They are manufactured using the same technology as standard device packages, thereby achieving very high reliability.
