ACTIVE
Features |
Advanced power saving, Integrated haptic effects, Smart loop |
Haptic actuator type |
ERM, LRA |
Input signal |
Analog, I2C, PWM |
Output voltage (max) (V) |
11 |
Shutdown current (ISD) (µA) |
0.105 |
Startup time (ms) |
1 |
Vs (max) (V) |
5.5 |
Vs (min) (V) |
2.7 |
Operating temperature range (°C) |
-40 to 85 |
Rating |
Catalog |

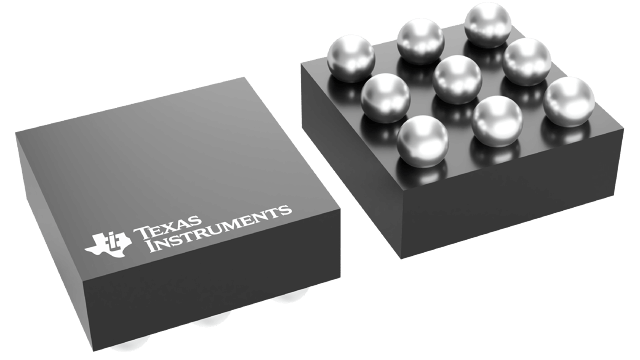

DSBGA (YFF)-9-1.96000000000000028000000000000001 mm² 1.4000000000000001 x 1.4000000000000001
(1)Patented control algorithm

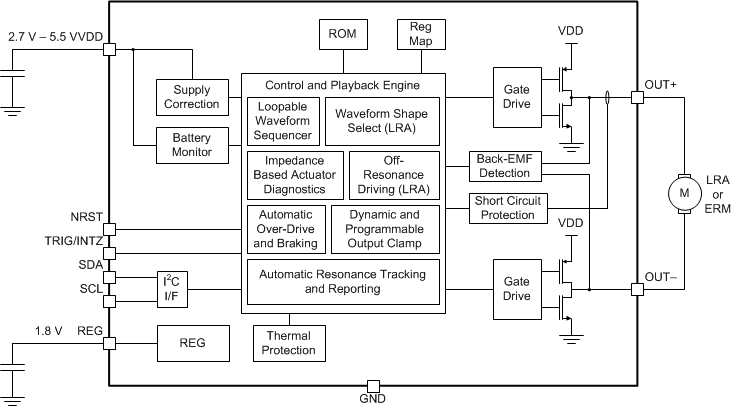

The DRV2625 device is a haptic driver that relies on a proprietary closed-loop architecture to deliver sharp, strong, and consistent haptic effects while optimizing power consumption.
The internal library and loopable waveform sequencer, together with the automatic overdrive and braking simplifies the process of generating crisp and optimum haptic effects, reducing the burden imposed into the processing unit.
The DRV2625 device features an automatic go-to-standby state and a battery preservation function to help reduce power consumption without user intervention. The NRST pin allows for a full shutdown state for additional power savings.
The waveform shape selection allows for sine-wave and square-wave drive to customize the haptic feel as well as the audible performance. Off-resonance driving with automatic braking simplifies the implementation of non-resonant haptic designs.
