TLV3544
  • TLV3544
  • TLV3544
  • TLV3544

TLV3544

ACTIVE

Quad, 200MHz, RRIO, CMOS Operational Amplifier

Texas Instruments TLV3544 Product Info

1 April 2026 7

Parameters

Architecture

FET / CMOS Input, Voltage FB

Number of channels

4

Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)

2.5

Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)

5.5

GBW (typ) (MHz)

100

BW at Acl (MHz)

200

Acl, min spec gain (V/V)

1

Slew rate (typ) (V/µs)

150

Vn at flatband (typ) (nV√Hz)

7.5

Vn at 1 kHz (typ) (nV√Hz)

7.5

Iq per channel (typ) (mA)

5.2

Vos (offset voltage at 25°C) (max) (mV)

10

Rail-to-rail

In, Out

Features

EMI Hardened

Rating

Catalog

Operating temperature range (°C)

-40 to 125

CMRR (typ) (dB)

80

Input bias current (max) (pA)

20

Offset drift (typ) (µV/°C)

4.5

Iout (typ) (mA)

100

2nd harmonic (dBc)

-75

3rd harmonic (dBc)

-83

Frequency of harmonic distortion measurement (MHz)

1

Package

SOIC (D)-14-51.9 mm² 8.65 x 6

Features

  • Wide-Bandwidth Amplifier for Cost-Sensitive Systems
  • Unity-Gain Bandwidth: 200 MHz
  • High Slew Rate: 150 V/µs
  • Low Noise: 7.5 nV/√Hz
  • Rail-to-Rail I/O
  • High Output Current: > 100 mA
  • Excellent Video Performance:
    • Diff Gain: 0.02%, Diff Phase: 0.09°
    • 0.1-dB Gain Flatness: 40 MHz
  • Low Input Bias Current: 3 pA
  • Quiescent Current: 5.2 mA
  • Thermal Shutdown
  • Supply Range: 2.5 V to 5.5 V
  • Wide-Bandwidth Amplifier for Cost-Sensitive Systems
  • Unity-Gain Bandwidth: 200 MHz
  • High Slew Rate: 150 V/µs
  • Low Noise: 7.5 nV/√Hz
  • Rail-to-Rail I/O
  • High Output Current: > 100 mA
  • Excellent Video Performance:
    • Diff Gain: 0.02%, Diff Phase: 0.09°
    • 0.1-dB Gain Flatness: 40 MHz
  • Low Input Bias Current: 3 pA
  • Quiescent Current: 5.2 mA
  • Thermal Shutdown
  • Supply Range: 2.5 V to 5.5 V

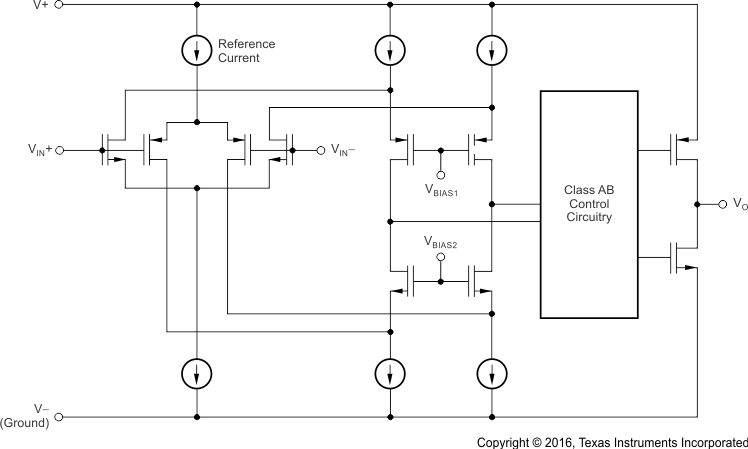

Description

The TLV3541, TLV3542 and TLV3544 are single-, dual-, and quad-channel, low-power (5.2-mA per channel), high-speed, unity-gain stable, rail-to-rail input/output operational amplifiers (op amps) designed for video and other applications that require wide bandwidth.

Consuming only 6.5 mA (maximum) of supply current, these devices feature 200-MHz gain-bandwidth product, 150-V/µs slew rate, and a low 7.5 nV/√Hz of input noise at f = 1 MHz. The combination of high bandwidth, high slew rate, and low noise make the TLV354x family suitable for low voltage, high-speed signal conditioning systems.

The TLV354x series of op amps are optimized for operation on single or dual supplies as low as 2.5 V (±1.25 V) and up to 5.5 V (±2.75 V). Common-mode input range extends beyond the supplies. The output swing is within 100 mV of the rails, and supports a wide dynamic range.

The TLV354x devices are specified from –40°C to +125°C. The TLV354x family can be used as a plug-in replacement for many commercially available wide bandwidth op amps.
