• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
  • Device Temperature Grade 3 (DRB and DGN package non T-suffix): –40°C to +85°C Ambient Operating Temperature Range
  • Device Temperature Grade 2 (DGN package T-suffix): –40°C to +105°C Ambient Operating Temperature Range
  • Device HBM Classification Level 2
  • Device CDM Classification Level C5
• 1.4 W Into 8 Ω From a 5-V Supply at
  THD = 10% (Typical)
• Maximum Battery Life and Minimum Heat
  • Efficiency With an 8-Ω Speaker:
    • 84% at 400 mW
    • 79% at 100 mW
  • 2.8-mA Quiescent Current
  • 0.5-μA Shutdown Current
• Only Three External Components
  • Optimized PWM Output Stage Eliminates LC Output Filter
  • Internally Generated 250-kHz Switching Frequency Eliminates Capacitor and Resistor
  • Improved PSRR (–71 dB at 217 Hz) and Wide Supply Voltage (2.5 V to 5.5 V) Eliminates Need for a Voltage Regulator

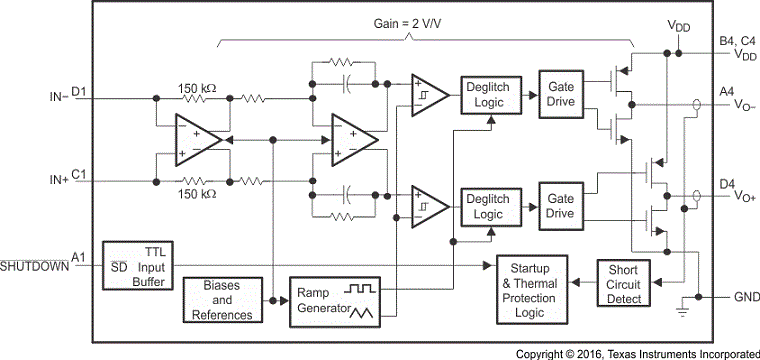

  • Fully Differential Design Reduces RF Rectification and Eliminates Bypass Capacitor
  • Improved CMRR Eliminates Two Input Coupling Capacitors
• Space-Saving Packages

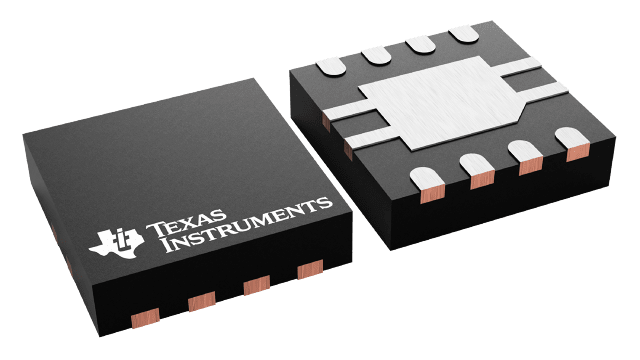

  • 3 mm × 3 mm SON package (DRB)

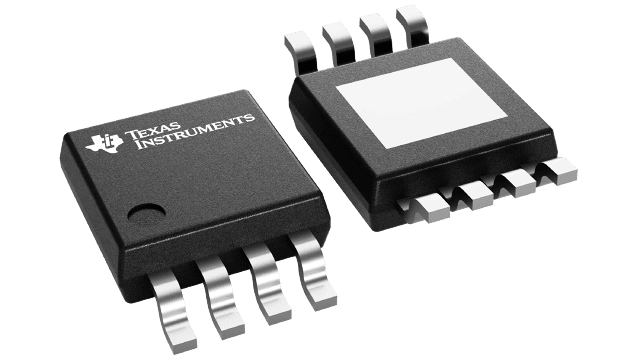

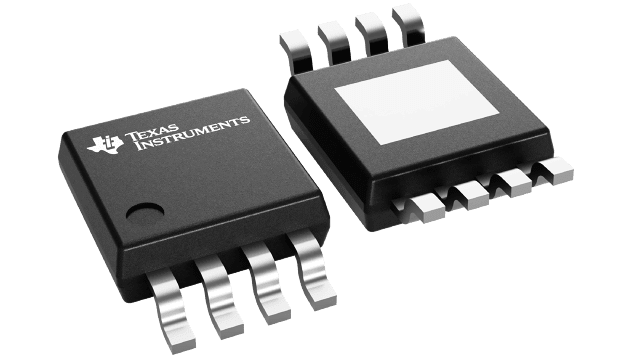

  • 3 mm × 5 mm MSOP-PowerPAD Package (DGN)

All trademarks are the property of their respective owners.
