Texas Instruments CSD87330Q3D Product Info

Parameters

VDS (V)	30
VGS (V)	10
Type	Power block
Configuration	PowerBlock
ID - continuous drain current at TA=25°C (A)	20
Power loss (W)	2
Ploss current (A)	15
Features	Power supply
Rating	Catalog
Operating temperature range (°C)	-55 to 150

Package

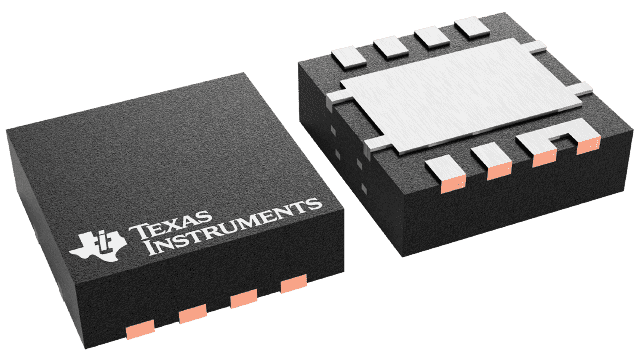

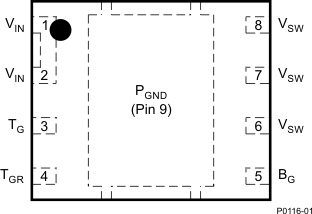

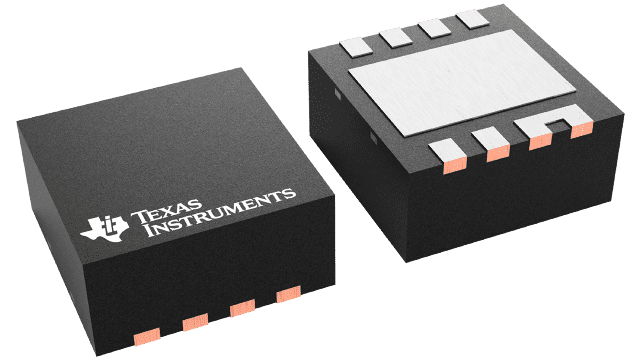

VSON-CLIP (DPB)-8-10.89 mm² 3.3 x 3.3

Features

Half-Bridge Power Block
Up to 27-V V_IN
90% System Efficiency at 15 A
Up to 20-A Operation
High-Frequency Operation (Up to 1.5 MHz)
High-Density SON 3.3-mm × 3.3-mm Footprint
Optimized for 5-V Gate Drive
Low-Switching Losses
Ultra-Low Inductance Package
RoHS Compliant
Halogen Free
Lead-Free Terminal Plating

Half-Bridge Power Block
Up to 27-V V_IN
90% System Efficiency at 15 A
Up to 20-A Operation
High-Frequency Operation (Up to 1.5 MHz)
High-Density SON 3.3-mm × 3.3-mm Footprint
Optimized for 5-V Gate Drive
Low-Switching Losses
Ultra-Low Inductance Package
RoHS Compliant
Halogen Free
Lead-Free Terminal Plating

Description

The CSD87330Q3D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 3.3-mm × 3.3-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of offering a high-density power supply when paired with any 5-V gate drive from an external controller/driver.
