Rating |
Catalog |
Vin (max) (V) |
5.5 |
Vin (min) (V) |
2.2 |
Iout (max) (A) |
1 |
Output options |
Adjustable Output, Fixed Output |
Vout (max) (V) |
5.4 |
Vout (min) (V) |
1.2 |
Fixed output options (V) |
1.8, 2.5, 3, 3.3, 3.4, 5.4 |
Noise (µVrms) |
48 |
PSRR at 100 KHz (dB) |
33 |
Iq (typ) (mA) |
0.4 |
Features |
Enable, Foldback Overcurrent protection, Reverse Current Protection |
Thermal resistance θJA (°C/W) |
47.7, 50 |
Load capacitance (min) (µF) |
1 |
Regulated outputs (#) |
1 |
Accuracy (%) |
3 |
Dropout voltage (Vdo) (typ) (mV) |
130 |
Operating temperature range (°C) |
-40 to 125 |

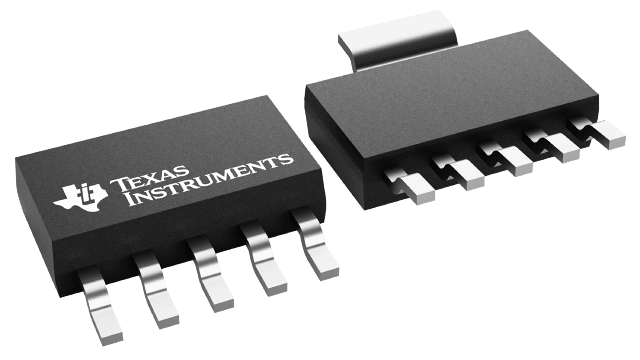

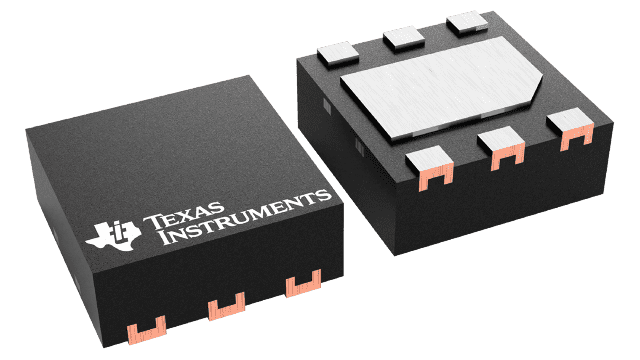

SOT-223 (DCQ)-6-45.89 mm² 6.5 x 7.06
The TPS737 linear low-dropout (LDO) voltage regulator uses an NMOS pass transistor in a voltage-follower configuration. This topology is relatively insensitive to the output capacitor value and ESR, allowing for a wide variety of load configurations. Load transient response is excellent, even with a small 1µF ceramic output capacitor. The NMOS topology also allows for very low dropout.
The TPS737 uses an advanced BiCMOS process to yield high precision while delivering very low dropout voltages and low ground pin current. Devices that use the latest manufacturing flow have an updated design with new silicon on the latest TI process technology. Current consumption, when not enabled, is less than 20nA and is designed for portable applications. This device is protected by thermal shutdown and foldback current limit.
For applications that require higher output voltage accuracy, consider TIs TPS7A37 1% overall accuracy, 1A low-dropout voltage regulator.
