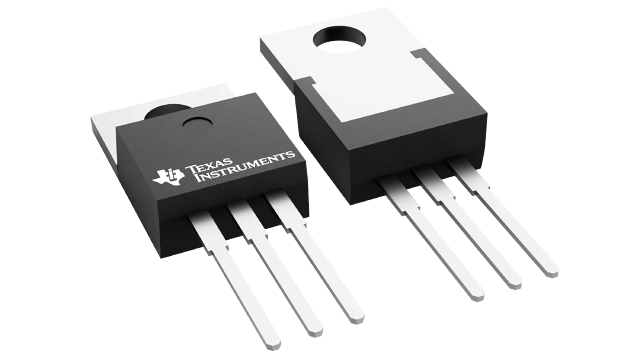

CSD18503KCS
  • CSD18503KCS

CSD18503KCS

ACTIVE

40-V, N channel NexFET™ power MOSFET, single TO-220, 4.5 mOhm

Texas Instruments CSD18503KCS Product Info

1 April 2026 0

Parameters

VDS (V)

40

VGS (V)

20

Type

N-channel

Configuration

Single

Rds(on) at VGS=10 V (max) (mΩ)

4.5

Rds(on) at VGS=4.5 V (max) (mΩ)

6.8

VGSTH typ (typ) (V)

1.9

QG (typ) (nC)

30

QGD (typ) (nC)

4.6

QGS (typ) (nC)

7.7

ID - silicon limited at TC=25°C (A)

142

ID - package limited (A)

100

Logic level

Yes

Rating

Catalog

Operating temperature range (°C)

-55 to 175

Package

TO-220 (KCS)-3-46.228 mm² 10.16 x 4.55

Features

  • Ultra low Qg and Qgd
  • Low thermal resistance
  • Avalanche rated
  • Logic level
  • Pb free terminal plating
  • RoHS compliant
  • Halogen free
  • TO-220 plastic package
  • Ultra low Qg and Qgd
  • Low thermal resistance
  • Avalanche rated
  • Logic level
  • Pb free terminal plating
  • RoHS compliant
  • Halogen free
  • TO-220 plastic package

Description

This 40V, 3.6mΩ, TO-220 NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.

This 40V, 3.6mΩ, TO-220 NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.
