ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Vos (offset voltage at 25°C) (max) (mV) |
0.5 |
Offset drift (typ) (µV/°C) |
2.5 |
Input bias current (max) (pA) |
10 |
GBW (typ) (MHz) |
5.5 |
Slew rate (typ) (V/µs) |
6 |
Rail-to-rail |
In, Out |
Iq per channel (typ) (mA) |
0.75 |
Vn at 1 kHz (typ) (nV√Hz) |
25 |
CMRR (typ) (dB) |
92 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Iout (typ) (A) |
0.05 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.3 |
Input common mode headroom (to positive supply) (typ) (V) |
0.3 |
Output swing headroom (to negative supply) (typ) (V) |
0.01 |
Output swing headroom (to positive supply) (typ) (V) |
-0.01 |
THD + N at 1 kHz (typ) (%) |
0.0007 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43

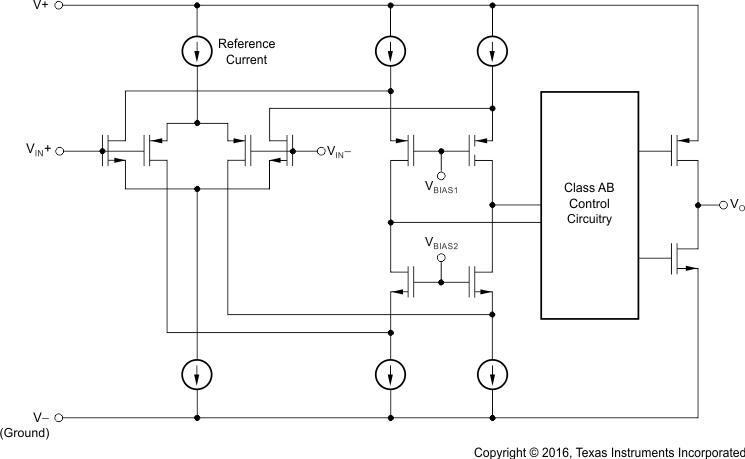

The OPA340 series rail-to-rail CMOS operational amplifiers are optimized for low-voltage, single-supply operation. Rail-to-rail input and output and high-speed operation make them ideal for driving sampling analog-to-digital (A/D) converters. They are also well-suited for general purpose and audio applications as well as providing I/V conversion at the output of digital-to-analog (D/A) converters. Single, dual, and quad versions have identical specifications for design flexibility.
The OPA340 series operate on a single supply as low as 2.5 V with an input common-mode voltage range that extends 500 mV below ground and 500 mV above the positive supply. Output voltage swing is to within 1 mV of the supply rails with a 100-kΩ load. These devices offer excellent dynamic response (BW = 5.5 MHz, SR = 6 V/µs), yet quiescent current is only 750 A. Dual and quad designs feature completely independent circuitry for lowest crosstalk and freedom from interaction.
The single (OPA340) packages are the tiny 5-pin SOT-23 surface mount, 8-pin SOIC surface mount, and 8-pin DIP. The dual (OPA2340) comes in the miniature 8-pin VSSOP surface mount, 8-pin SOIC surface mount, and 8-pin PDIP packages. The quad (OPA4340) packages are the space-saving 16-pin SSOP surface mount and 14-pin SOIC surface mount. All are specified from –40°C to 85°C and operate from –55°C to 125°C. A SPICE macromodel is available for design analysis.
