ACTIVE
Number of channels |
1 |
Output type |
Open-collector, Open-drain |
Propagation delay time (µs) |
0.115 |
Vs (max) (V) |
30 |
Vs (min) (V) |
3.5 |
Rating |
Military |
Features |
Strobe, Vos Adj Pin |
Iq per channel (typ) (mA) |
5.1 |
Vos (offset voltage at 25°C) (max) (mV) |
3 |
Rail-to-rail |
No |
Operating temperature range (°C) |
-55 to 125 |
Input bias current (±) (max) (nA) |
100 |
VICR (max) (V) |
28 |
VICR (min) (V) |
0.5 |

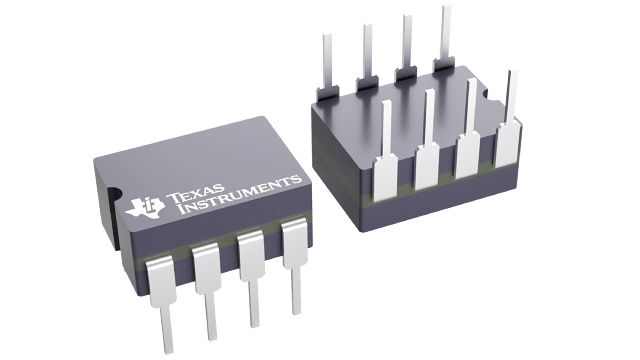

CDIP (JG)-8-64.032 mm² 9.6 x 6.67
The LM111, LM211, and LM311 devices are single high-speed voltage comparators. These devices are designed to operate from a wide range of power-supply voltages, including ±15-V supplies for operational amplifiers and 5-V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits. These comparators are capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground. The outputs can drive loads referenced to ground, VCC+ or VCC−. Offset balancing and strobe capabilities are available, and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.
