AMC131M01
  • AMC131M01
  • AMC131M01

AMC131M01

ACTIVE

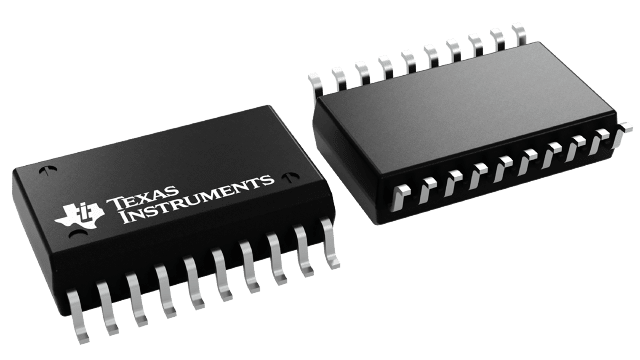

24-bit, 32-kSPS, 1-channel, simultaneous-sampling, delta-sigma ADC

Texas Instruments AMC131M01 Product Info

1 April 2026 2

Parameters

Device type

Current sensing, Voltage sensing

Sample rate (max) (Msps)

0.064

Rating

Catalog

CMTI (min) (kV/µs)

0.0001

Number of input channels

1

Architecture

Delta-Sigma

SNR (dB)

98

Operating temperature range (°C)

-40 to 125

Power consumption (typ) (mW)

53

SFDR (dB)

105

Isolation rating

Reinforced

Withstand isolation voltage (VISO) (Vrms)

5000

Working isolation voltage (VIOWM) (Vrms)

1200

Transient isolation voltage (VIOTM) (VPK)

7070

Creepage (min) (mm)

8

Clearance (min) (mm)

8

Package

SOIC (DFM)-20-132.149 mm² 12.83 x 10.3

Features

  • Isolated ΔΣ ADC with differential input
  • Single-supply operation (3.3 V or 5 V) with integrated DC/DC converter
  • Low EMI: Meets CISPR-11 and CISPR-25 standards
  • Programmable data rate up to 64 kSPS
  • Programmable gain up to 128
  • Low-drift internal voltage reference
  • 4-wire SPI interface with cyclic redundancy check (CRC)
  • Safety-related certifications:
    • 7070-V PEAK reinforced isolation per DIN EN IEC 60747-17 (VDE 0884-17)
    • 5000-V RMS isolation for 1 minute per UL1577
  • Package: 20-pin, wide-body SOIC
  • Operating temperature range: –40°C to +125°C
  • Isolated ΔΣ ADC with differential input
  • Single-supply operation (3.3 V or 5 V) with integrated DC/DC converter
  • Low EMI: Meets CISPR-11 and CISPR-25 standards
  • Programmable data rate up to 64 kSPS
  • Programmable gain up to 128
  • Low-drift internal voltage reference
  • 4-wire SPI interface with cyclic redundancy check (CRC)
  • Safety-related certifications:
    • 7070-V PEAK reinforced isolation per DIN EN IEC 60747-17 (VDE 0884-17)
    • 5000-V RMS isolation for 1 minute per UL1577
  • Package: 20-pin, wide-body SOIC
  • Operating temperature range: –40°C to +125°C

Description

The AMC131M01 is a precision, single-channel, data- and power-isolated, 24-bit, delta-sigma (ΔΣ), analog-to-digital converter (ADC). The AMC131M01 offers wide dynamic range, low power, and energy-measurement-specific features designed for energy metering and power metrology applications. The ADC inputs can be directly interfaced to a resistor-divider network or a shunt current sensor because of the device high input impedance.

The AMC131M01 features a fully integrated isolated DC/DC converter that allows single-supply operation from the low-side of the device. The reinforced capacitive isolation barrier is certified according to VDE 0884-17 and UL1577. This isolation barrier separates parts of the system that operate on different common-mode voltage levels and protects lower-voltage parts from damage, making the AMC131M01 an excellent choice for polyphase energy metering applications using shunt current sensors.
