ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
30 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
10 |
Rail-to-rail |
No |
GBW (typ) (MHz) |
1 |
Slew rate (typ) (V/µs) |
0.5 |
Vos (offset voltage at 25°C) (max) (mV) |
6 |
Iq per channel (typ) (mA) |
1.5 |
Vn at 1 kHz (typ) (nV√Hz) |
45 |
Rating |
Catalog |
Operating temperature range (°C) |
0 to 70 |
Offset drift (typ) (µV/°C) |
0 |
Input bias current (max) (pA) |
500000 |
CMRR (typ) (dB) |
90 |
Iout (typ) (A) |
0.045 |
Architecture |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
3 |
Input common mode headroom (to positive supply) (typ) (V) |
-3 |
Output swing headroom (to negative supply) (typ) (V) |
1 |
Output swing headroom (to positive supply) (typ) (V) |
-1 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43

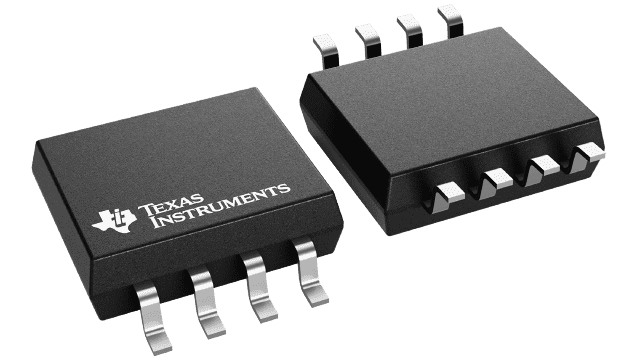

The MC1458 and MC1558 are dual general-purpose operational amplifiers, with each half electrically similar to the µA741, except that offset null capability is not provided.
The high-common-mode input voltage range and the absence of latch-up make these amplifiers ideal for voltage-follower applications. The devices are short-circuit protected and the internal frequency compensation ensures stability without external components.
