ACTIVE
Architecture |
Voltage FB |
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
6 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
12 |
GBW (typ) (MHz) |
700 |
BW at Acl (MHz) |
700 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
335 |
Vn at flatband (typ) (nV√Hz) |
8 |
Vn at 1 kHz (typ) (nV√Hz) |
8 |
Iq per channel (typ) (mA) |
5.5 |
Vos (offset voltage at 25°C) (max) (mV) |
7 |
Rail-to-rail |
No |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
CMRR (typ) (dB) |
95 |
Input bias current (max) (pA) |
15000000 |
Offset drift (typ) (µV/°C) |
7 |
Iout (typ) (mA) |
140 |
2nd harmonic (dBc) |
78 |
3rd harmonic (dBc) |
72 |
Frequency of harmonic distortion measurement (MHz) |
5 |
SOIC (D)-8-29.4 mm² 4.9 x 6
: 0.05%/0.03°All other trademarks are the property of their respective owners

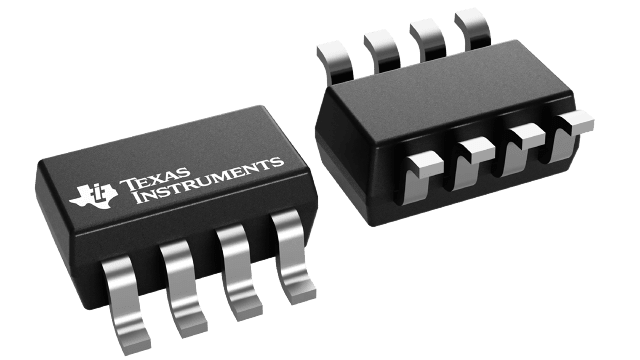

The OPA2652 is a dual, low-cost, wideband voltage feedback amplifier intended for price-sensitive applications. It features a high gain bandwidth product of 200MHz on only 5.5mA/channel quiescent current. Intended for operation on ±5V supplies, it also supports applications on a single supply from +6V to +12V with 140mA output current. Its classical differential input, voltage-feedback design allows wide application in active filters, integrators, transimpedance amplifiers, and differential receivers.
The OPA2652 is internally compensated for unity gain stability. It has exceptional bandwidth (700MHz) as a unity gain buffer, with little peaking (0dB typ). Excellent DC accuracy is achieved with a low 1.5mV input offset voltage and 300nA input offset current.
