ACTIVE
Resolution (Bits) |
12 |
Sample rate (max) (ksps) |
3.3 |
Number of input channels |
1 |
Interface type |
I2C |
Architecture |
Delta-Sigma |
Input type |
Differential, Single-ended |
Rating |
Catalog |
Reference mode |
Internal |
Input voltage range (max) (V) |
5.5 |
Input voltage range (min) (V) |
0 |
Features |
Oscillator, Small Size |
Operating temperature range (°C) |
-40 to 125 |
Power consumption (typ) (mW) |
0.3 |
Analog supply voltage (min) (V) |
2 |
Analog supply voltage (max) (V) |
5.5 |
Digital supply (min) (V) |
2 |
Digital supply (max) (V) |
5.5 |
VSSOP (DGS)-10-14.7 mm² 3 x 4.9

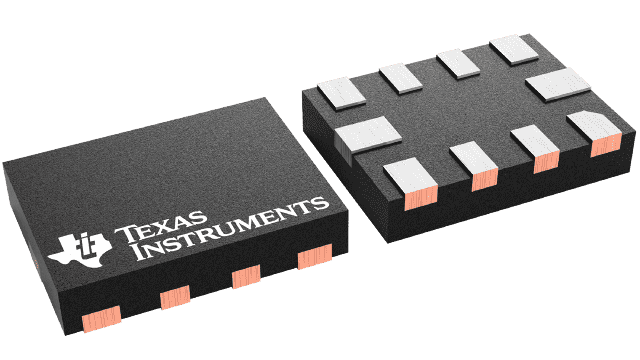

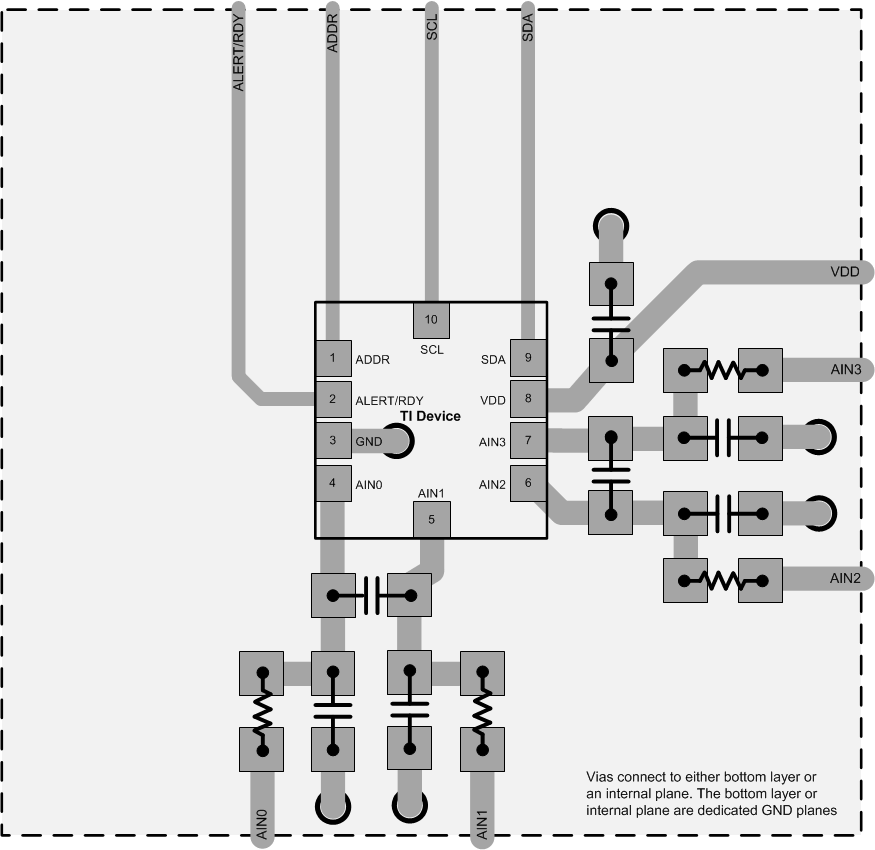

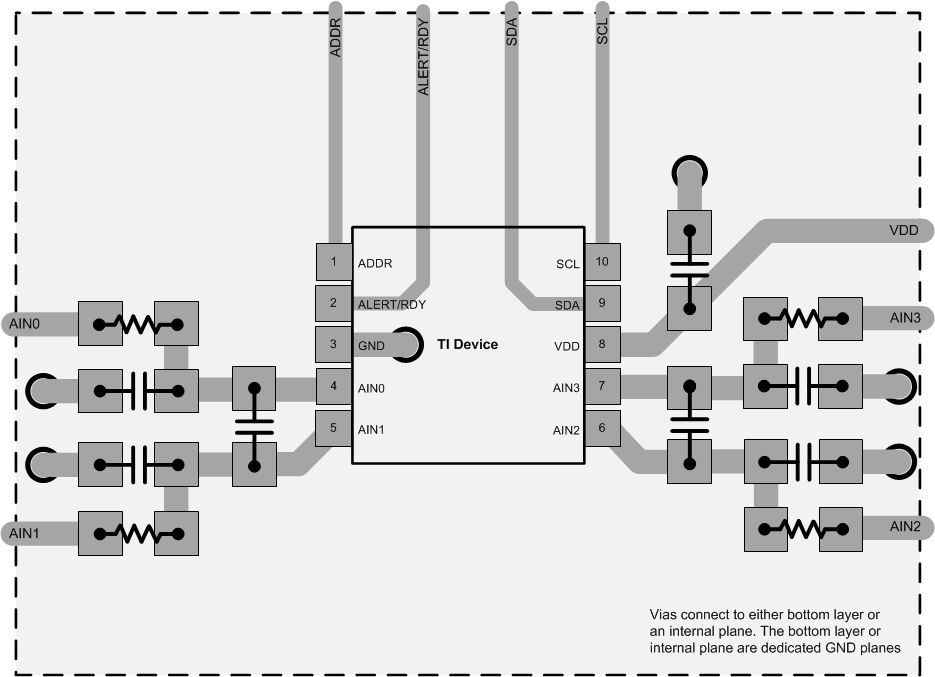

The ADS1013, ADS1014, and ADS1015 (ADS101x) are precision, low-power, 12-bit, I2C-compatible, analog-to-digital converters (ADCs) offered in a leadless X2QFN-10, a SOT-10, and a VSSOP-10 package. The ADS101x incorporates a low-drift voltage reference and an oscillator. The ADS1014 and ADS1015 also incorporate a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, are useful for power- and space-constrained, sensor measurement applications.
The ADS101x perform conversions at data rates up to 3300 samples per second (SPS). The PGA offers input ranges from ±256mV to ±6.144V, allowing precise large- and small-signal measurements. The ADS1015 features an input multiplexer (MUX) that allows two differential or four single-ended input measurements. Use the digital comparator in the ADS1014 and ADS1015 for under- and overvoltage detection.
