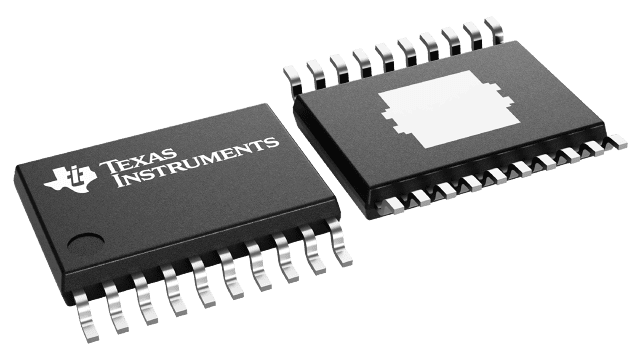

TPS1653
  • TPS1653
  • TPS1653

TPS1653

ACTIVE

58-V 4.5-A eFuse with pulse current support

Texas Instruments TPS1653 Product Info

1 April 2026 3

Parameters

Vabsmax_cont (V)

67

Vin (max) (V)

58

Vin (min) (V)

4.5

Current limit (max) (A)

4.5

Current limit (min) (A)

0.6

Features

Adjustable current limit, Adjustable soft start, Current monitoring, Fault output, Power good signal, Thermal shutdown, adjustable UVLO

Overcurrent response

Current limiting

Fault response

Auto-retry, Latch-off

Ron (typ) (mΩ)

31

Rating

Catalog

Soft start

Adjustable

Quiescent current (Iq) (typ) (A)

0.00138

Quiescent current (Iq) (max) (A)

0.0017

Device type

eFuses and hot swap controllers

Operating temperature range (°C)

-40 to 125

Package

HTSSOP (PWP)-20-41.6 mm² 6.5 x 6.4

Features

  • 4.5-V to 58-V operating voltage, 67-V absolute maximum
  • Integrated 58-V, 31-mΩ RON Hot-Swap FET
  • 0.6-A to 4.5-A adjustable current limit (± 7%)
  • IPC9592B clearance for 56-V operation (20-pin HTSSOP)
  • 2x pulse current support for load transients
  • Low quiescent current, 21-µA in shutdown
  • Adjustable UVLO cut off with ± 2% accuracy
  • Adjustable output slew rate control for inrush current limiting
    • Charges large and unknown capacitive loads through thermal regulation during device power up
  • Power Good Output (PGOOD)
  • Selectable overcurrent fault response options between Auto-Retry and Latch Off (MODE)
  • Analog current monitor (IMON) output (± 6%)
  • Available in easy-to-use 20-pin HTSSOP and 24-pin VQFN packages
  • 4.5-V to 58-V operating voltage, 67-V absolute maximum
  • Integrated 58-V, 31-mΩ RON Hot-Swap FET
  • 0.6-A to 4.5-A adjustable current limit (± 7%)
  • IPC9592B clearance for 56-V operation (20-pin HTSSOP)
  • 2x pulse current support for load transients
  • Low quiescent current, 21-µA in shutdown
  • Adjustable UVLO cut off with ± 2% accuracy
  • Adjustable output slew rate control for inrush current limiting
    • Charges large and unknown capacitive loads through thermal regulation during device power up
  • Power Good Output (PGOOD)
  • Selectable overcurrent fault response options between Auto-Retry and Latch Off (MODE)
  • Analog current monitor (IMON) output (± 6%)
  • Available in easy-to-use 20-pin HTSSOP and 24-pin VQFN packages

Description

The TPS16530 is an easy to use, positive 58-V, 4.5-A eFuse with a 31-mΩ integrated FET. Protection for the load, source and eFuse itself are provided along with adjustable features such as accurate overcurrent protection, fast short circuit protection, output slew rate control and undervoltage lockout. PGOOD can be used for enable and disable control of the downstream DC-DC converters.

The enable pin provides external control for enabling and disabling the internal FET. The shutdown pin can be used for putting the device in low power shutdown mode. For system status monitoring and downstream load control, the device provides fault and a precise current monitor output. The MODE pin allows flexibility to configure the device between the two current-limiting fault responses (latch off and auto-retry).

The devices are available in 20-pin HTSSOP and 24-pin VQFN packages and are specified over a –40°C to +125°C temperature range.
