Product
0

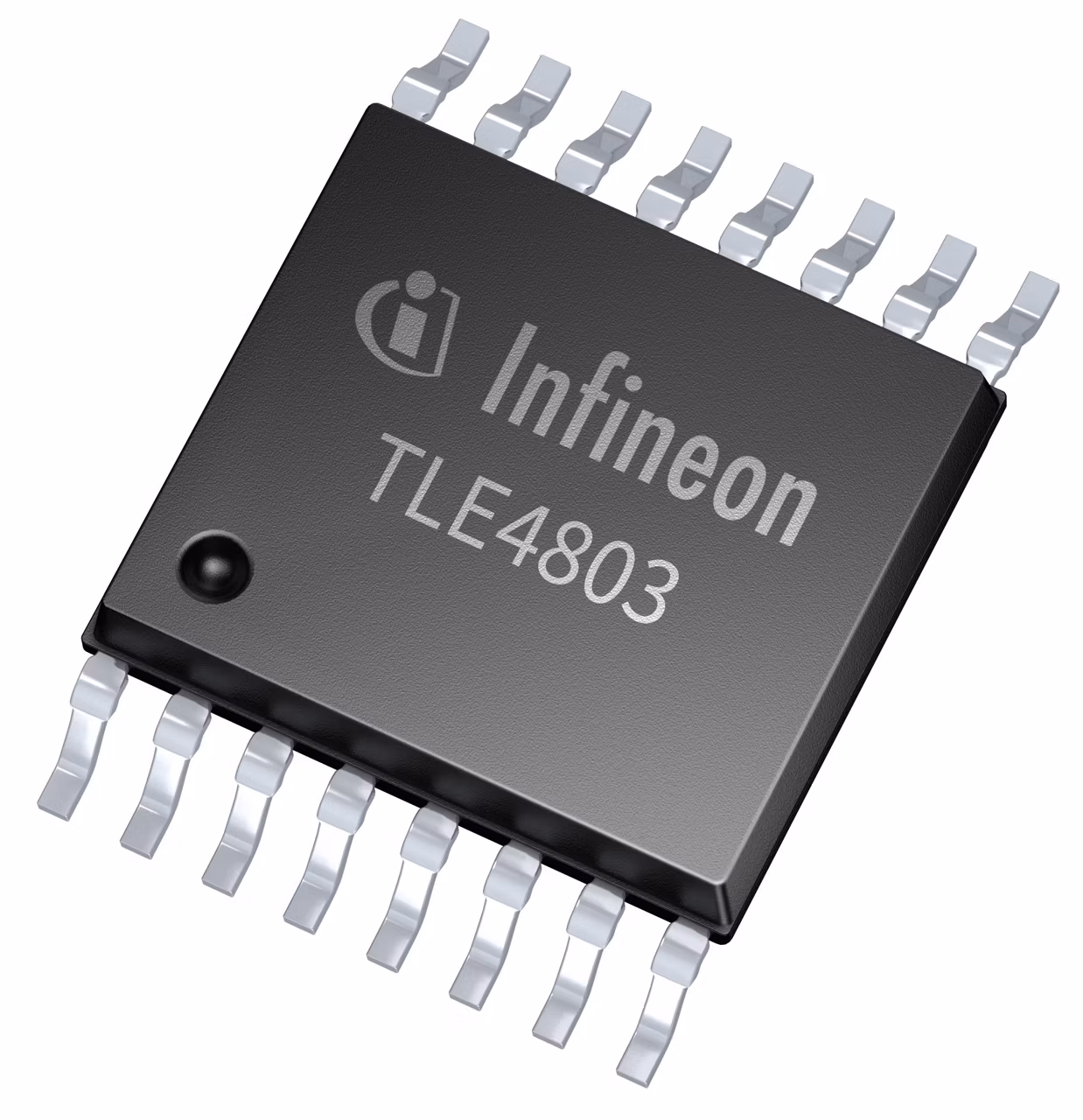

TLE4803S16-S0000
  • TLE4803S16-S0000

TLE4803S16-S0000

Active and preferred

The inductive sensing products TLE480x support excellent stray field robustness providing intrinsically an significantly higher accuracy compared to magnetic sensor technologies. The design is done according ISO 26262 Safety Element out of Context and enables system design safety levels up to ASIL D. The TLE4802 includes an embedded security feature which enables for ISO 21434 compliance on system-level

Infineon Technologies TLE4803S16-S0000 Product Info

16 April 2026 0

Parameters

Classification

ISO 26262-compliant

Interfaces

SENT

Package

PG-TDSO-16

Planned to be available until at least

2038

Supply Voltage range

-18 V to 28 V

Technology

inductive

Temperature range

-40 °C to 150 °C

Features

  • Stray field robust acc. ISO 11452-8:2015
  • Based on inductive measurement principle
  • High flexibility device
  • Single device for two differential angles
  • Includes calibration & configuration registers
  • Meets ASIL D acc. ISO 26262:2018 (SEooC)
  • Supports cyber security (ISO 21434:2021 ready)
  • Communication interfaces:
  • SENT (based on SAE J2716-2016)
  • Overvoltage and rev. polarity protection
  • PG-TSSOP-16 SMD package
  • Grade 0: -40°C to 150°C
  • RoHS compliant and halogen-free package

Description

  • Saves cost of shielding
  • Supports high precision sensing
  • Saves costs and efforts for functional safe designs
