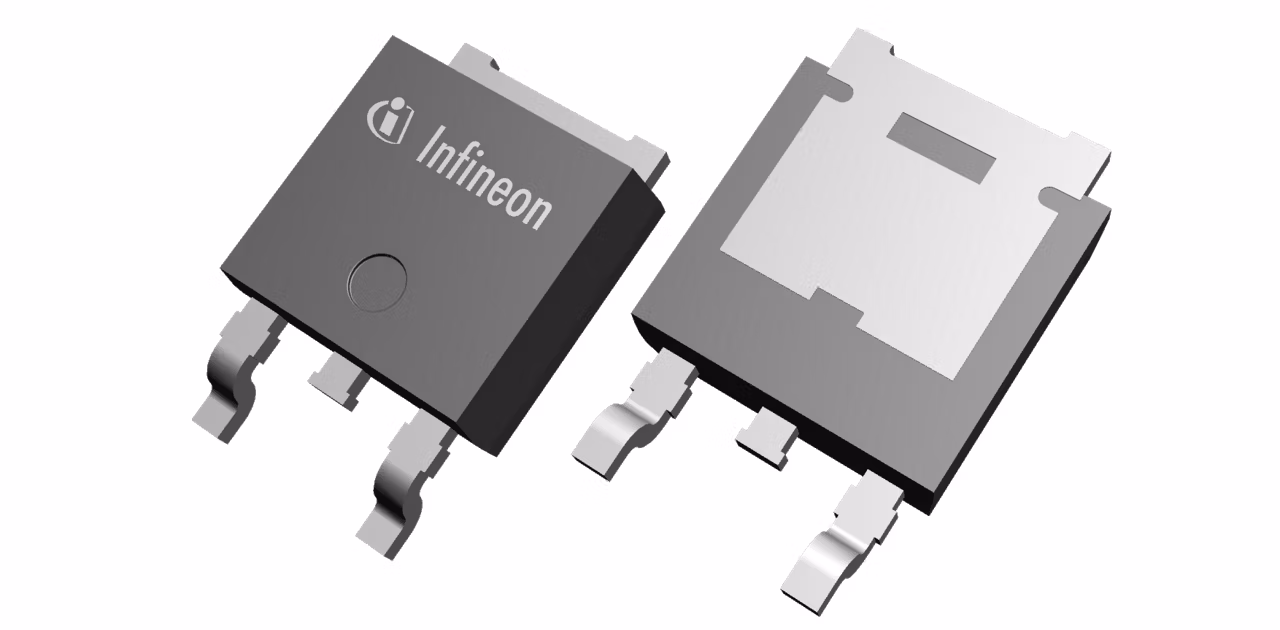

IPD079N06L3 G
  • IPD079N06L3 G

IPD079N06L3 G

Active and preferred

OptiMOS™ 60V is a perfect choice for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops and tablet charger. In addition these devices can be used for a broad range of industrial applications including motor control, solar micro inverter and fast switching DC-DC converter.

Infineon Technologies IPD079N06L3 G Product Info

16 April 2026 1

Parameters

Budgetary Price €/1k

0.38

Ciss

3700 pF

Coss

690 pF

ID (@25°C) max

50 A

IDpuls max

200 A

Operating Temperature range

-55 °C to 175 °C

Package

DPAK (TO-252)

Polarity

N

Ptot max

79 W

QG (typ @4.5V)

22 nC

RDS (on) (@10V) max

7.9 mΩ

RDS (on) (@4.5V) max

13.5 mΩ

RDS (on) (@4.5V LL) max

13.5 mΩ

Rth

1.9 K/W

Special Features

Logic Level

VDS max

60 V

VGS(th) range

1.2 V to 2.2 V

VGS(th)

1.7 V

Apps

Healthcare, Solid-state circuit breaker (SSCB)

Features

  • Charge x RDS(on)product (FOM)
  • Low on-resistance R DS(on)
  • Ideal for fast switching applications
  • RoHS compliant - halogen free
  • MSL1 rated

Description

  • Highest system efficiency
  • Less paralleling required
  • Increased power density
  • System cost reduction
  • Very low voltage overshoot
