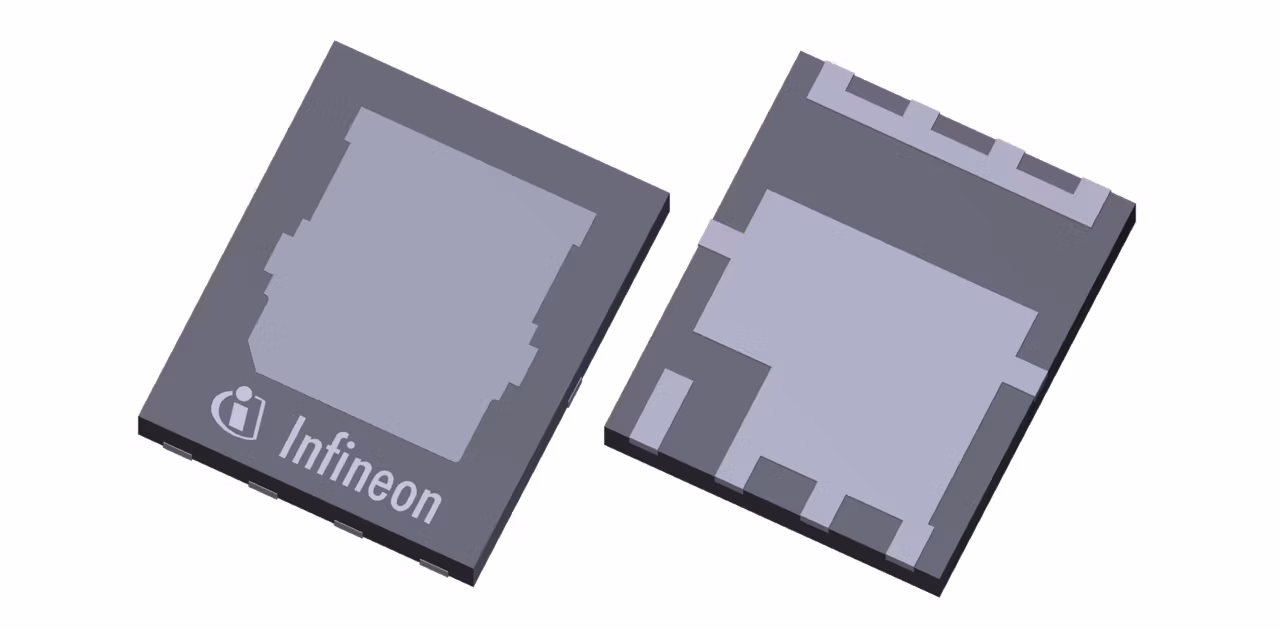

IQDH88N06LM5SC
  • IQDH88N06LM5SC

IQDH88N06LM5SC

Active and preferred

The power MOSFET IQDH88N06LM5SC comes with a low RDS(on) of 0,86 mOhm combined with outstanding thermal performance for easy power loss management. Moreover, with the dual-side cooling package five times more power can be dissipated compared to the overmolded package. This enables higher system efficiency and power density for a large variety of end applications.

Infineon Technologies IQDH88N06LM5SC Product Info

16 April 2026 0

Parameters

ID (@25°C) max

447 A

Operating Temperature range

-55 °C to 175 °C

Package

PQFN 5x6 Source-Down

Polarity

N

QG (typ @4.5V)

76 nC

QG (typ @10V)

152 nC

RDS (on) (@10V) max

0.86 mΩ

RDS (on) (@4.5V) max

1.24 mΩ

Special Features

Logic Level, Dual-Side Cooling

VDS max

60 V

VGS(th) range

1.1 V to 2.3 V

VGS(th)

1.7 V

Apps

Data center power solutions, Server power supply units (PSU), Telecommunications infrastructure, Cordless power tools and outdoor power equipment, Low-voltage drives, Power conversion

Features

  • Cutting edge 60 V silicon technology
  • Outstanding FOMs
  • Improved thermal performance
  • Ultra-low parasitics
  • Maximized chip/package ratio

Description

  • Minimized conduction losses
  • Reduced voltage overshoot
  • Increased maximum current capability
  • Fast switching
  • Less device paralleling required
  • Lowest RDS(on) on a 5x6 footprint
  • Improved thermal performance
  • Easy thermal management
  • Best switching performance
  • Industry-standard package
