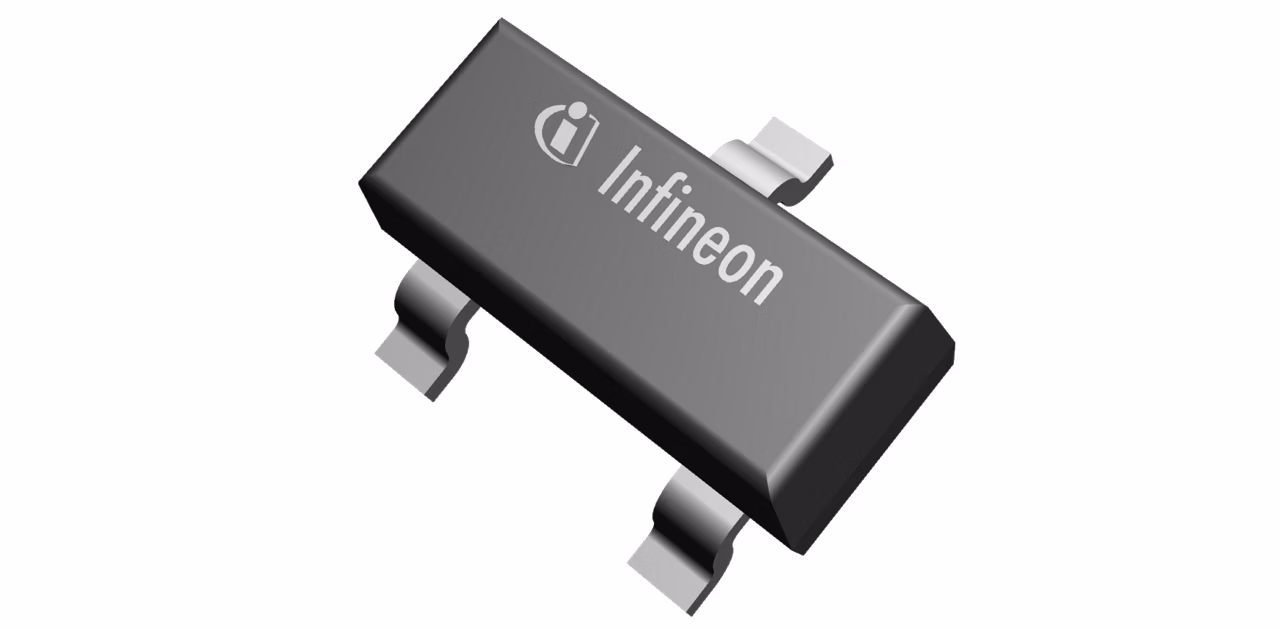

IRLML0060
  • IRLML0060

IRLML0060

Active and preferred

The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Infineon Technologies IRLML0060 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.09

ID (@25°C) max

2.7 A

Moisture Sensitivity Level

1

Mounting

SMD

Operating Temperature range

-55 °C to 150 °C

Package

SOT-23

Polarity

N

Ptot (@ TA=25°C) max

1.25 W

Qgd

1.3 nC

QG (typ @4.5V)

2.5 nC

RDS (on) (@4.5V) max

116 mΩ

RDS (on) (@10V) max

92 mΩ

RthJA max

100 K/W

Special Features

Logic Level, Small Power

Tj max

150 °C

VDS max

60 V

VGS(th) range

1 V to 2.5 V

VGS(th)

1.75 V

VGS max

16 V

Apps

Power adapters and chargers, Battery energy storage (BESS)

Features

  • Standard surface-mount power package
  • Qualification according JEDEC standard
  • Applications switching below <100 kHz
  • Softer body-diode

Description

  • Drop-in replacement with standard pinout
  • Industry standard qualification level
  • High performance, low-frequency
  • Increased power density
