Absolute Maximum Ratings

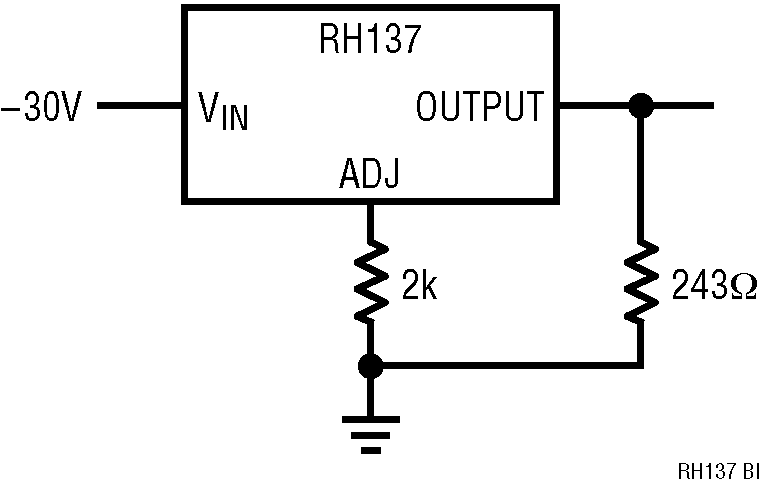

The RH137 negative adjustable regulator will deliver up to 1.5A output current over an output voltage range of –1.2V to –22V.
Every effort has been made to make these devices easy to use and difficult to damage. Internal current and power limiting coupled with true thermal limiting prevents device damage due to overloads or shorts, even if the regulator is not fastened to a heat sink.
Maximum reliability is attained with Analog Device’s advanced processing techniques combined with a 100% burn-in in the thermal limit mode. This assures that all device protection circuits are working and eliminates field failures experienced with other regulators that receive only standard electrical testing.
The wafer lots are processed to Analog Device’s in-house Class S flow to yield circuits usable in stringent military applications.
We partner with third party vendors who assemble and test packaged products with RH Dice inside.
| Part Number | Description | SMD |
| MSK5973RH | 1.5A Negative Adjustable Voltage LDO Regulator | 5962-05219 |
| VRG8601 |
