Analog Devices LTP5902-IPM Product Info

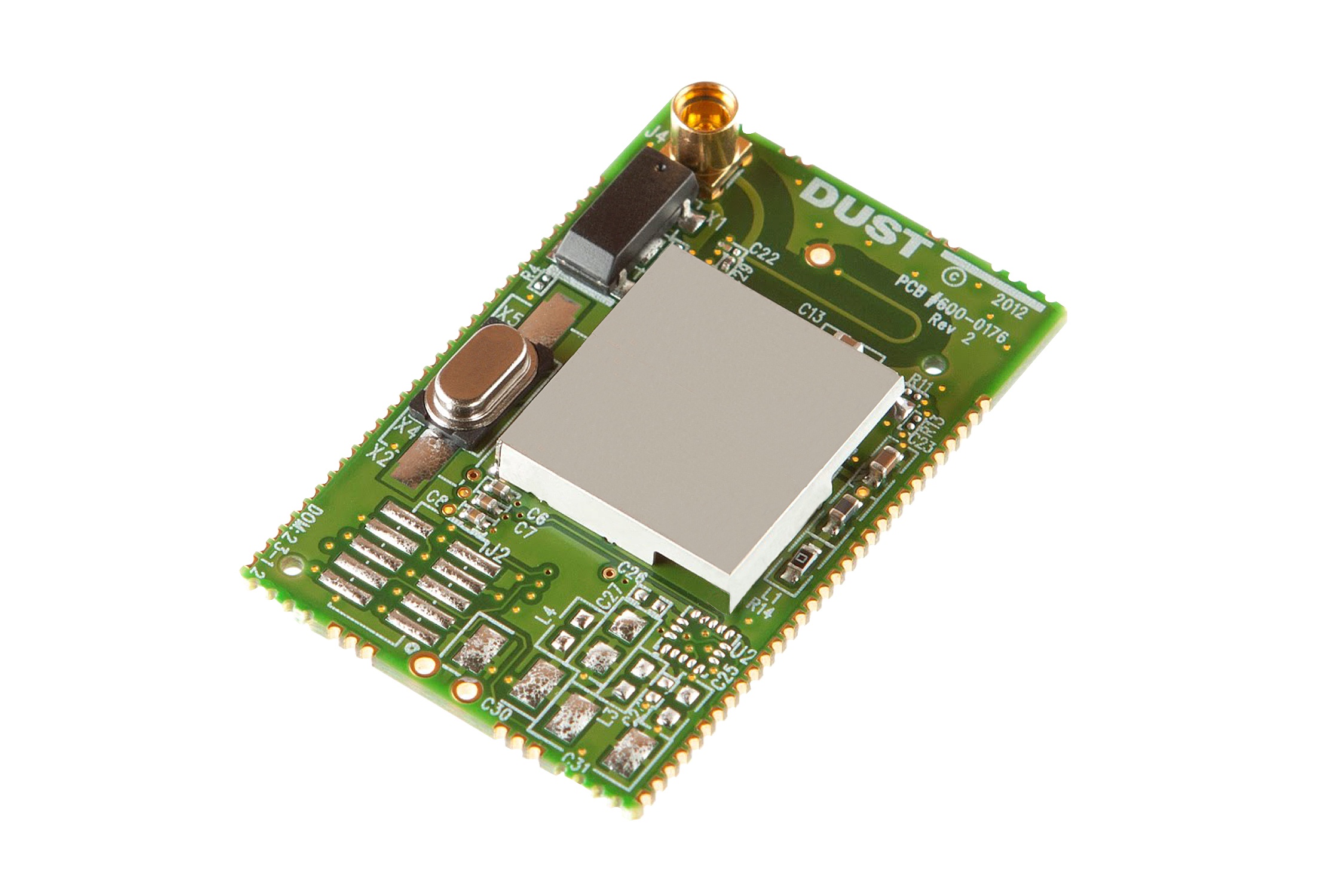

• 37mm × 24mm PCBA module with MMCX antenna connector
• Integrates 2.4 GHz, IEEE 802.15.4e System-on-Chip, Complete with Embedded SmartMesh Networking Software
  • >99.999% Network Reliability in the Most Challenging RF Environments
  • Sub 50µA Routing Nodes
• Serves as either a Wireless Mote, EManager, or Access Point Mote in a SmartMesh IP network
• These products contain encryption. Import/export restrictions may apply.

SmartMesh IP wireless sensor networks are self managing, low power internet protocol (IP) networks built from wireless nodes called motes.The LTP5902-IPM is printed circuit board assembly (PCBA) product with on-board chip antenna in the Eterna^® family of IEEE 802.15.4e solutions, featuring a highly integrated, low power radio design as well as an ARM Cortex-M3 32-bit microprocessor running SmartMesh IP embedded networking software. The LTP5902-IPM, at 37mm × 24mm, is built for surface-mount assembly.

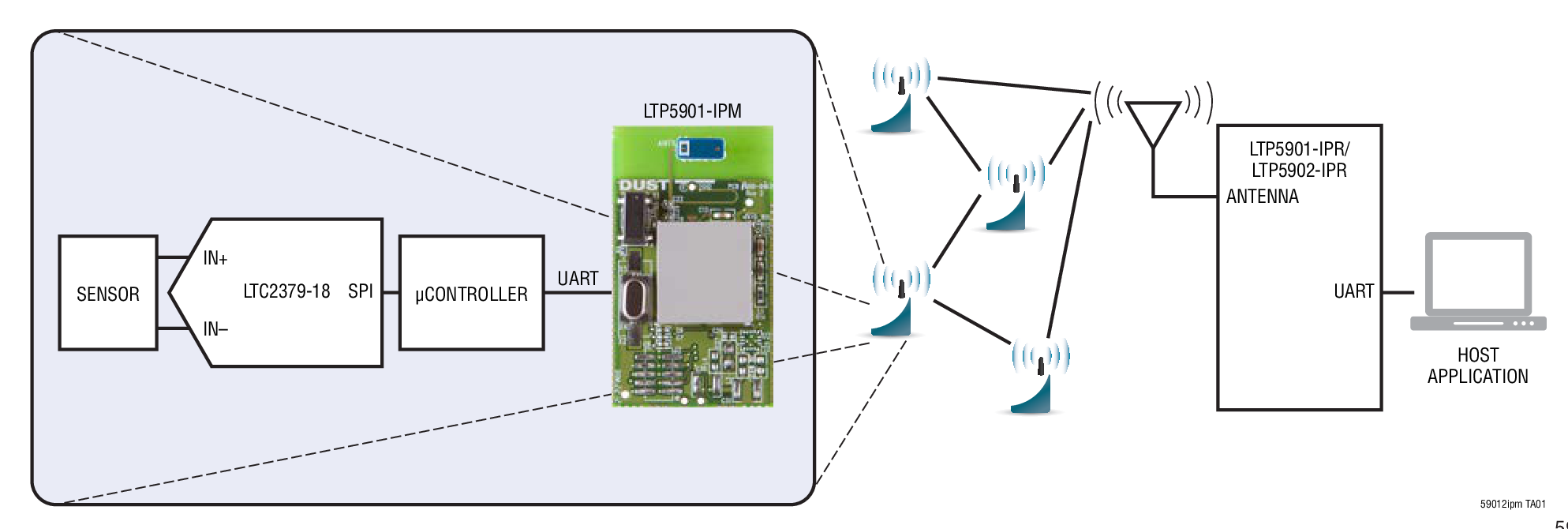

With SmartMesh IP time-synchronized networks, all motes in the network may route, source or terminate data, while providing many years of battery powered operation. SmartMesh IP is a highly flexible network with proven reliability and low power performance in an easy-to-integrate platform.

The LTP5902-IPM’s behavior in a SmartMesh IP network is determined by the choice of SmartMesh IP network software loaded: Wireless Mote, EManager, Access Point Mote in a SmartMesh IP network. The SmartMesh IP software provided with the LTP5902-IPM is fully tested and validated, and is readily configured via a software Application Programming Interface. Once you have purchased SmartMesh IP products, the SmartMesh IP stack binaries may be downloaded via your myAnalog account.

The pin signaling behavior of the LTP5902IPC-IPMA hardware is determined by the software loaded and is described in detail in the following product datasheets:

LTP5902-IPM
