DS1087L

PRODUCTION

3.3V Spread-Spectrum EconOscillator Industry's Only 3V Single-Chip Oscillator Reduces EMI Up to 20dB

Analog Devices DS1087L Product Info

10 February 2026 5

Features

Factory Programmed Square-Wave Generator from 130kHz to 66.6MHz
No External Timing Components Required
EMI Reduction
2.7V to 3.6V Supply
User Programmable Down to 130kHz with Divider (Dependent on Master Oscillator Frequency)
2% or 4% Selectable Dithered Output
Glitchless Output-Enable Control
2-Wire Serial Interface
Nonvolatile Settings
Power-Down Mode
Programmable Output Power-Down/Disable Mode

Part details & applications

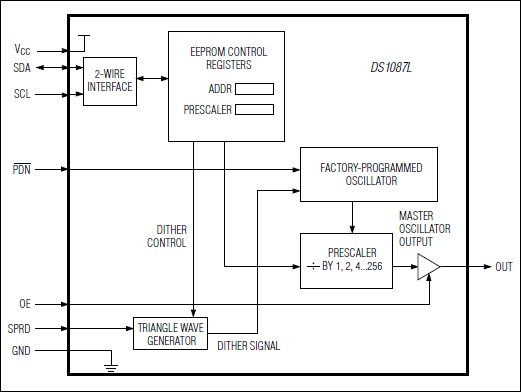

The DS1087L is a clock generator that produces a spread-spectrum (dithered) square-wave output of frequencies from 130kHz to 66.6MHz. The DS1087L is shipped from the factory programmed at a specific frequency and spread-spectrum percentage. The user still has access to an internal frequency divider, selectable 2% or 4% dithered output, and programmable output power-down/disable mode through a 2-wire programming interface. All the device settings are stored in nonvolatile (NV) EEPROM allowing it to operate in stand-alone applications. The DS1087L has power-down and output-enable control pins for power-sensitive applications.

Applications

Cable Modems
Cell Phones
Computer Peripherals
Copiers
PCs
Printers
