HMC1162

RECOMMENDED FOR NEW DESIGNS

9.25 GHz to 10.10 GHz MMIC VCO with Half Frequency Output

Analog Devices HMC1162 Product Info

10 February 2026 5

Features

Dual output
f_OUT = 9.25 GHz to 10.10 GHz
f_OUT/2 = 4.625 GHz to 5.050 GHz
Power output (P_OUT): 11 dBm (typical)

Single-sideband (SSB) phase noise: −115 dBc/Hz at 100 kHz
No external resonator needed
RoHS-compliant, 5 mm × 5 mm LFCSP: 25 mm²

Part details & applications

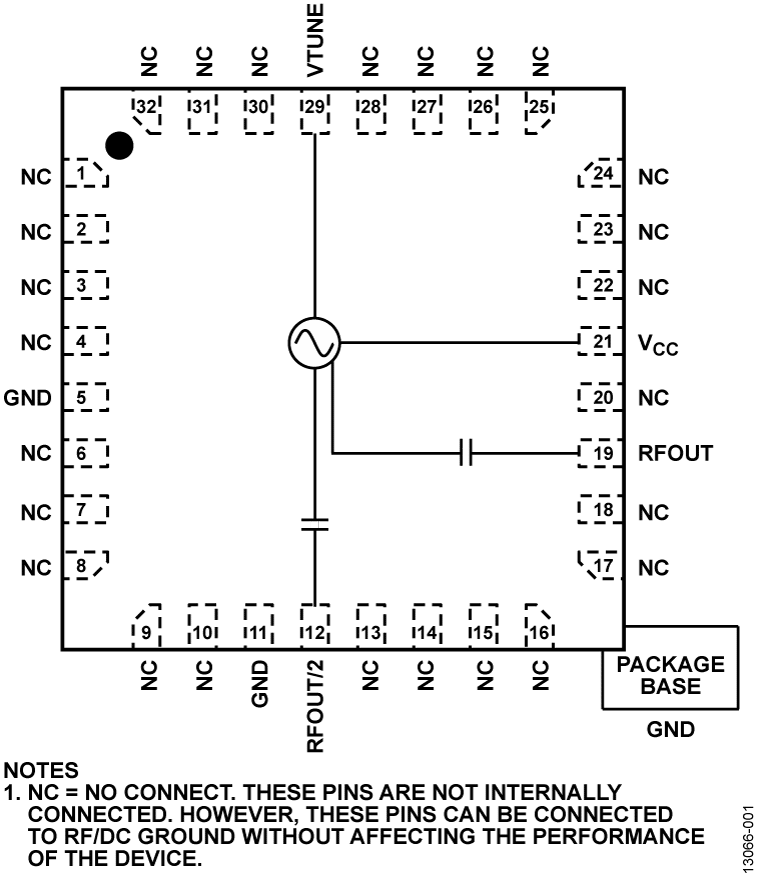

The HMC1162 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator (VCO) that integrates the resonator, a negative resistance device, and varactor diodes, and features a half frequency output.

Because of the monolithic construction of the oscillator, the output power and phase noise performance are excellent over temperature.

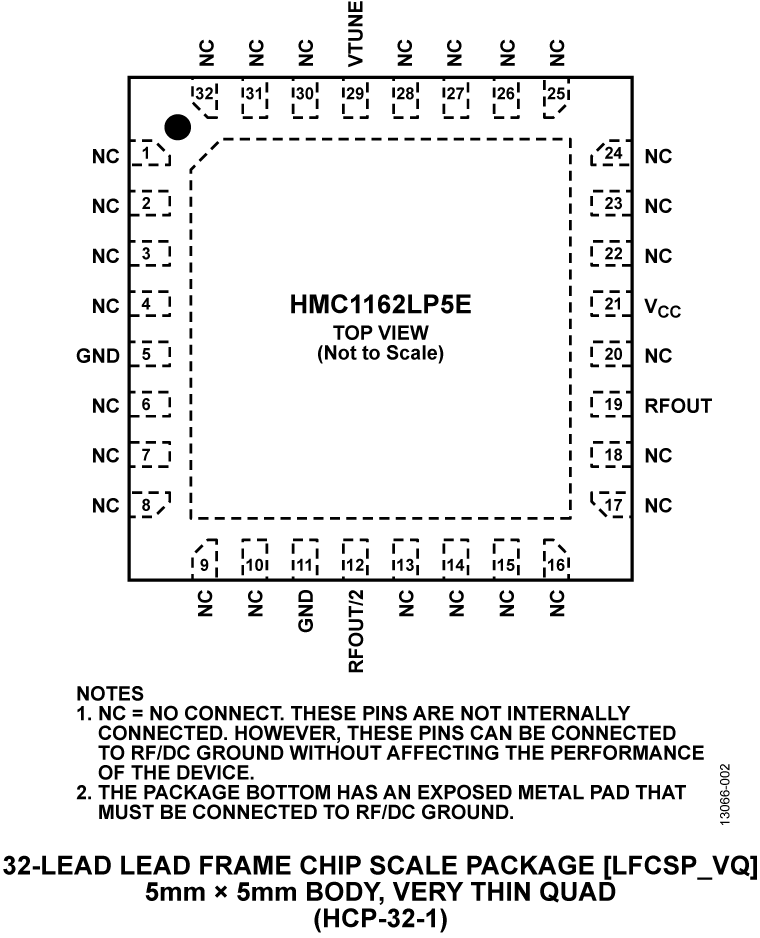

The power output is 11 dBm typical from a 5 V supply voltage. The VCO is housed in a RoHS-compliant, 32-lead LFCSP and requires no external matching components.

APPLICATIONS

Point to point and multipoint radios
Test equipment and industrial controls
Very small aperture terminals (VSATs)
