MAX5101

PRODUCTION

+2.7V to +5.5V, Low-Power, Triple, Parallel 8-Bit DAC with Rail-to-Rail Voltage Outputs Lowest-Power, Triple, Parallel 8-Bit DAC

Analog Devices MAX5101 Product Info

10 February 2026 6

Features

+2.7V to +5.5V Single-Supply Operation
Ultra-Low Supply Current
- 0.3mA while Operating
- 1µA in Software Shutdown Mode
Ultra-Small 16-Pin TSSOP Package
Output Buffer Amplifiers Swing Rail-to-Rail
Power-On Reset Sets All Registers to Zero

Part details & applications

The MAX5101 parallel-input, voltage-output, triple 8-bit digital-to-analog converter (DAC) operates from a single +2.7V to +5.5V supply and comes in a space-saving 16-pin TSSOP package. Internal precision buffers swing Rail-to-Rail. For all three DACs, the internal reference voltage is tied to V_DD.

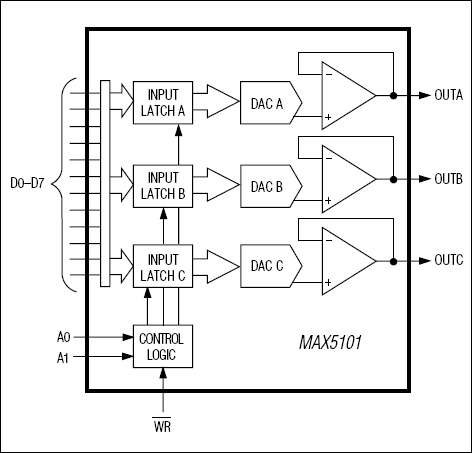

The MAX5101 has separate input latches for each of its three DACs. Data is transferred to the input latches from a common 8-bit input port. The DACs are individually selected through address inputs A0 and A1 and are updated by bringing active-low WR low. The MAX5101 features a 1µA software shutdown mode, as well as a power-on reset mode that resets all registers to code 00 hex on power-up.

Applications

Digital Gain and Offset Control
Portable Instrumentation
Power-Amp Bias Control
Programmable Attenuators
