MAX16710

RECOMMENDED FOR NEW DESIGNS

10A, 1.5MHz, 2.7V to 16V Integrated Step-Down Switching Regulator Shrink your power designs with industry’s smallest and fastest 10A step down switching regulator

Analog Devices MAX16710 Product Info

10 February 2026 6

Features

High Power Density with Low Component Count
- Compact 2.52mm x 2.93mm, 25-Bump WLP
- Internal Compensation
- Single-Supply Operation with Integrated LDO for Bias Generation
Wide Operating Range
- 2.7V to 16V Input Voltage Range
- 0.5V to 5.8V Output Voltage Range
- 500kHz to 1.5MHz Configurable Switching Frequency
- -40°C to +125°C Junction Temperature Range
- Three Programming Pins to Select Different Configurations

Optimized Performance and Efficiency
- 93.1% Peak Efficiency with V_DDH = 12V, V_OUT = 1.8V, and f_SW = 500kHz
- AMS to Improve Load Transient
- Selectable DCM to Improve Light Load Efficiency
- Differential Remote Sense

Part details & applications

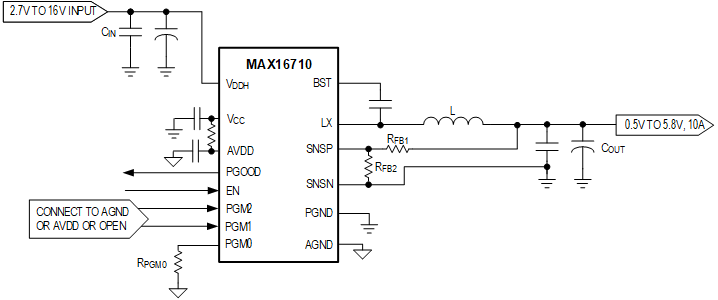

The MAX16710 is a fully integrated, highly efficient, step-down DC-DC switching regulator. The regulator is able to operate from 2.7V to 16V input supplies, and the output can be adjusted from 0.5V to 5.8V, delivering up to 10A of load current.

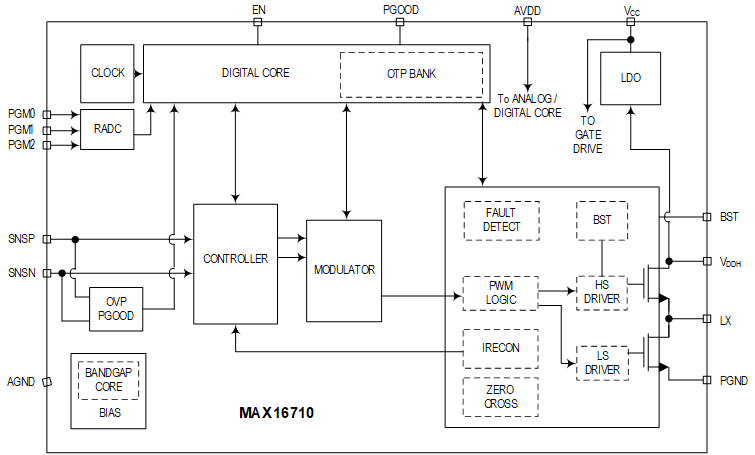

The MAX16710 utilizes fixed-frequency, current-mode control with internal compensation. The IC features an advanced modulation scheme (AMS) and selectable discontinuous current mode (DCM) operation to provide improved performance. Operation settings and configurable features can be selected by three programming pins PGM0, PGM1, and PGM2.

The IC has an internal 1.8V linear regulator (LDO) output to power the gate drives (V_CC) and internal circuitry (AVDD).

The IC has multiple protections including positive and negative overcurrent protection, output overvoltage protection, and overtemperature protection to ensure a robust design.

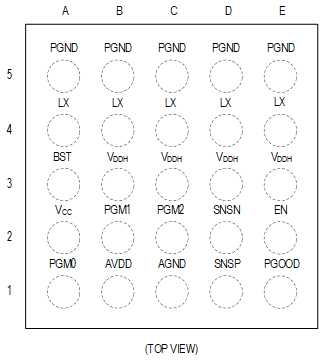

The device is available in a compact 2.52mm x 2.93mm wafer-level package (WLP). It supports -40°C to +125°C junction temperature operation.
