Analog Devices MAX9172 Product Info

• Input Accepts LVDS and LVPECL
• In-Path Fail-Safe Circuit
• Space-Saving 8-Pin TDFN and SOT23 Packages
• Fail-Safe Circuitry Sets Output High for Open, Undriven Shorted, or Undriven Terminated Output
• Flow-Through Pinout Simplifies PCB Layout
• Guaranteed 500Mbps Data Rate
• Second Source to DS90LV018A and DS90LV028A (SO Packages Only)
• Conforms to ANSI TIA/EIA-644 Standard
• 3.3V Supply Voltage
• -40°C to +85°C Operating Temperature Range
• Low-Power Dissipation

The MAX9171/MAX9172 single/dual low-voltage differential signaling (LVDS) receivers are designed for high-speed applications requiring minimum power consumption, space, and noise. Both devices support switching rates exceeding 500Mbps while operating from a single 3.3V supply.

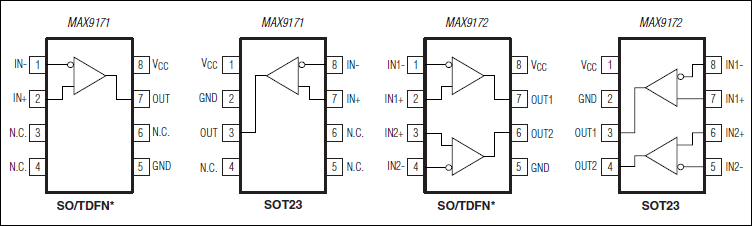

The MAX9171 is a single LVDS receiver and the MAX9172 is a dual LVDS receiver. Both devices conform to the ANSI TIA/EIA-644 LVDS standard and convert LVDS to LVTTL/LVCMOS-compatible outputs. A fail-safe feature sets the outputs high when the inputs are undriven and open, terminated, or shorted. The MAX9171/MAX9172 are available in 8-pin SO packages and space-saving thin DFN and SOT23 packages.

For lower skew devices, refer to the MAX9111/MAX9113 data sheet.

Applications

• Cellular Phone Base Stations
• Clock Distribution
• Digital Copiers
• Laser Printers
• LCD Displays
• Multipoint Backplane Interconnect
• Network Switches/Routers
